I. Product Overview

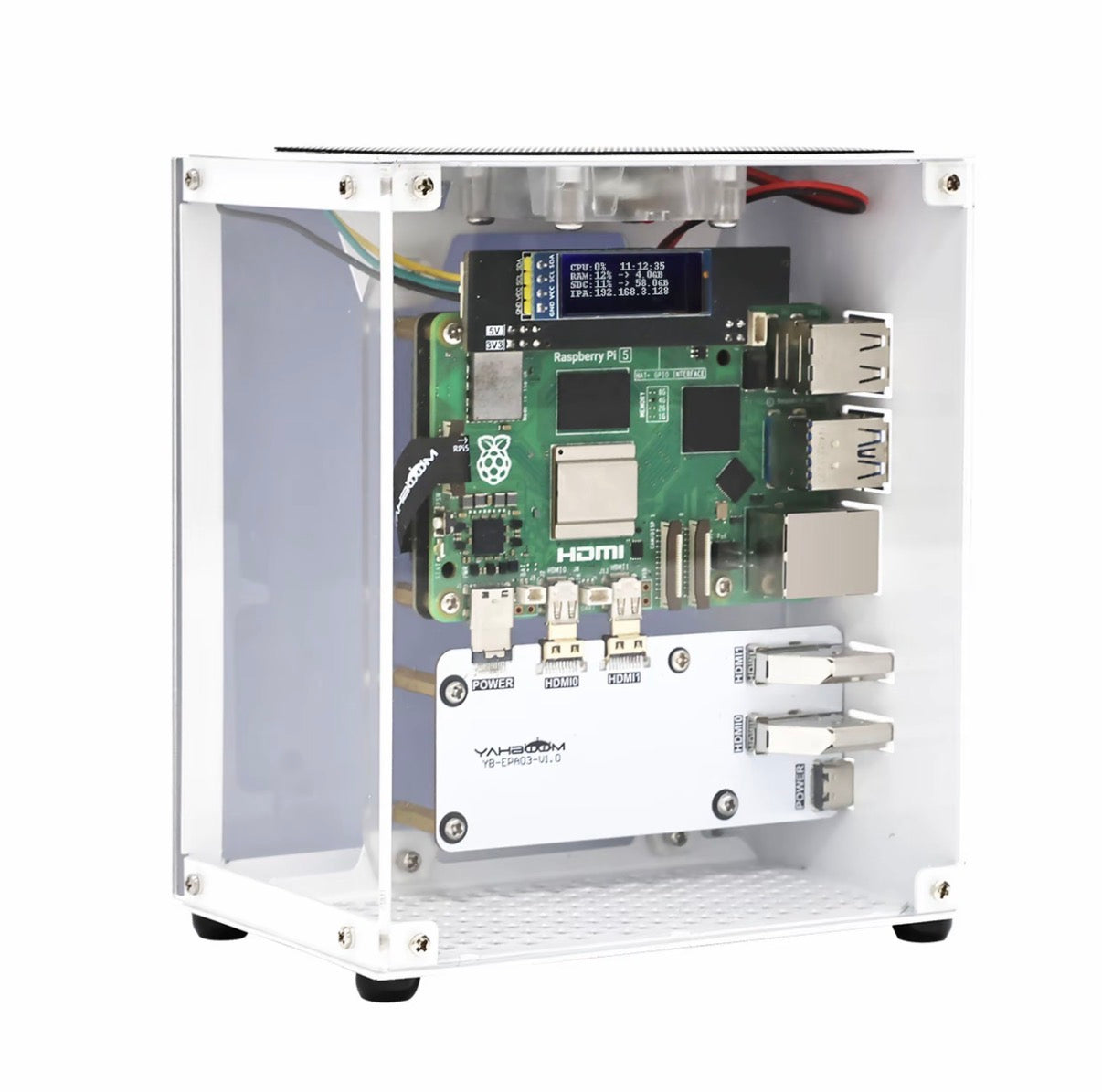

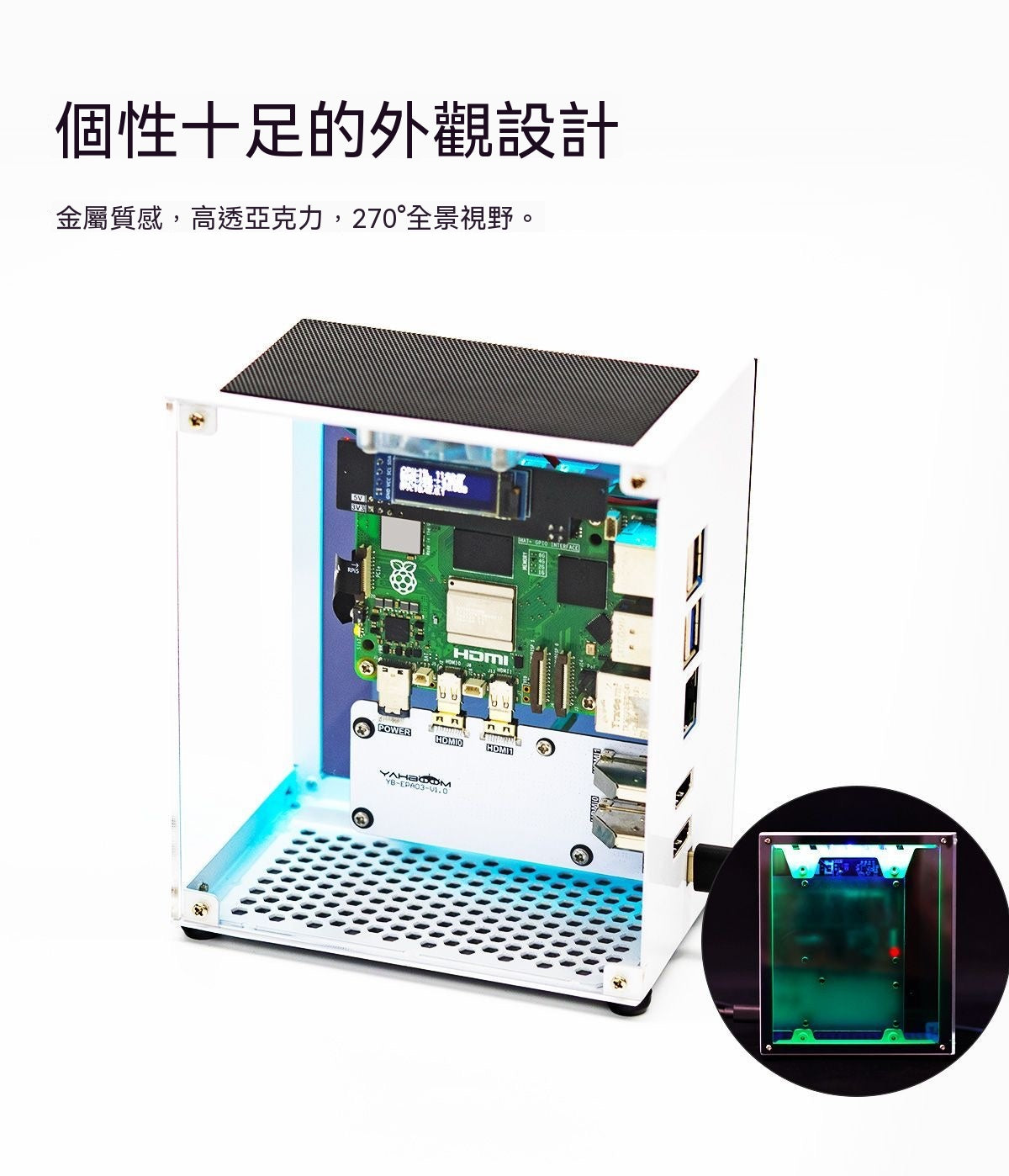

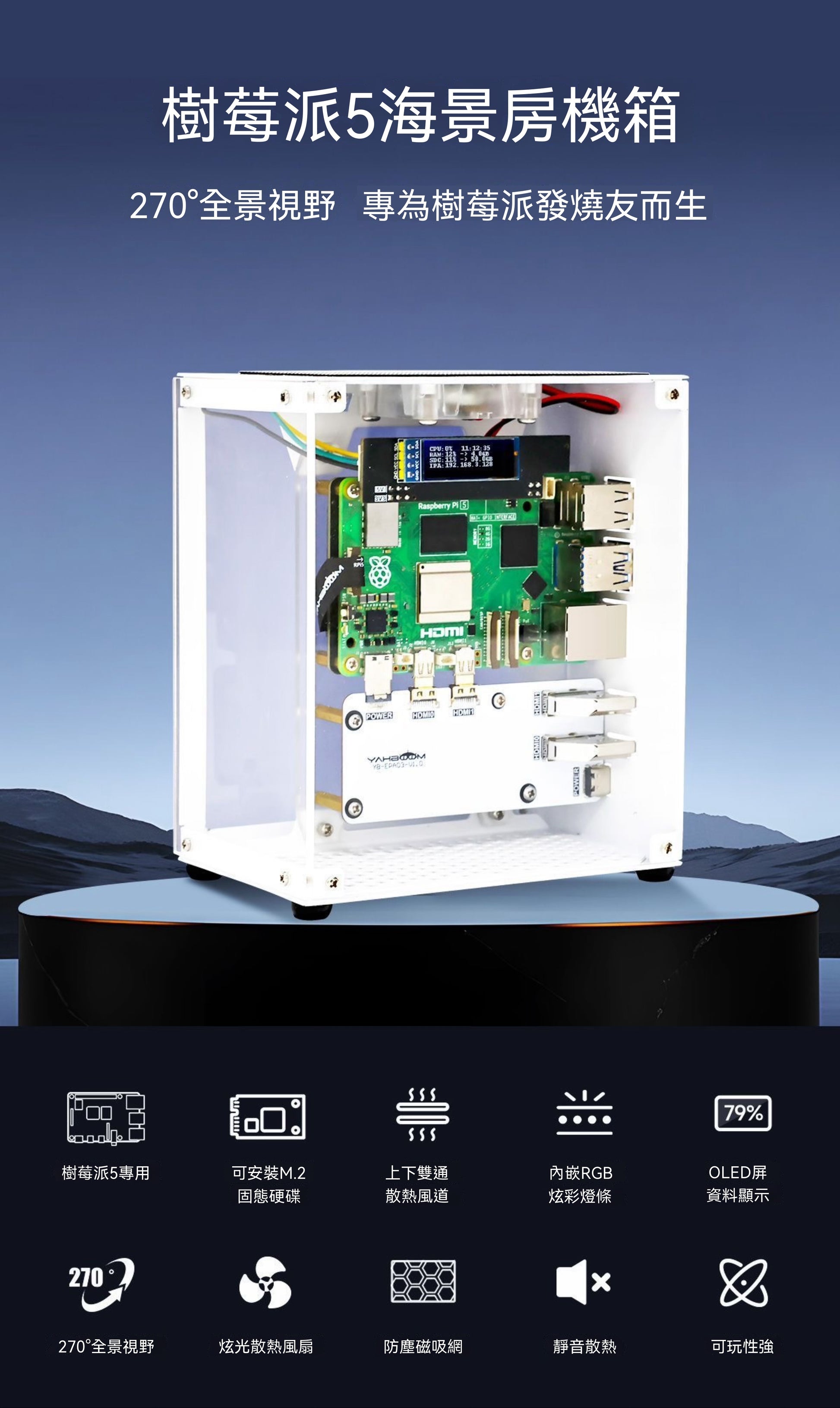

A mini "ocean view" case custom-made for the Raspberry Pi 5, featuring 270° panoramic acrylic transparency and a micro-computer aesthetic design. The body adopts an integrated painted metal frame (not aluminum alloy), paired with high-transparency acrylic side panels, offering DIY playability, heat dissipation, and visual lighting effects. Available in three configuration versions.

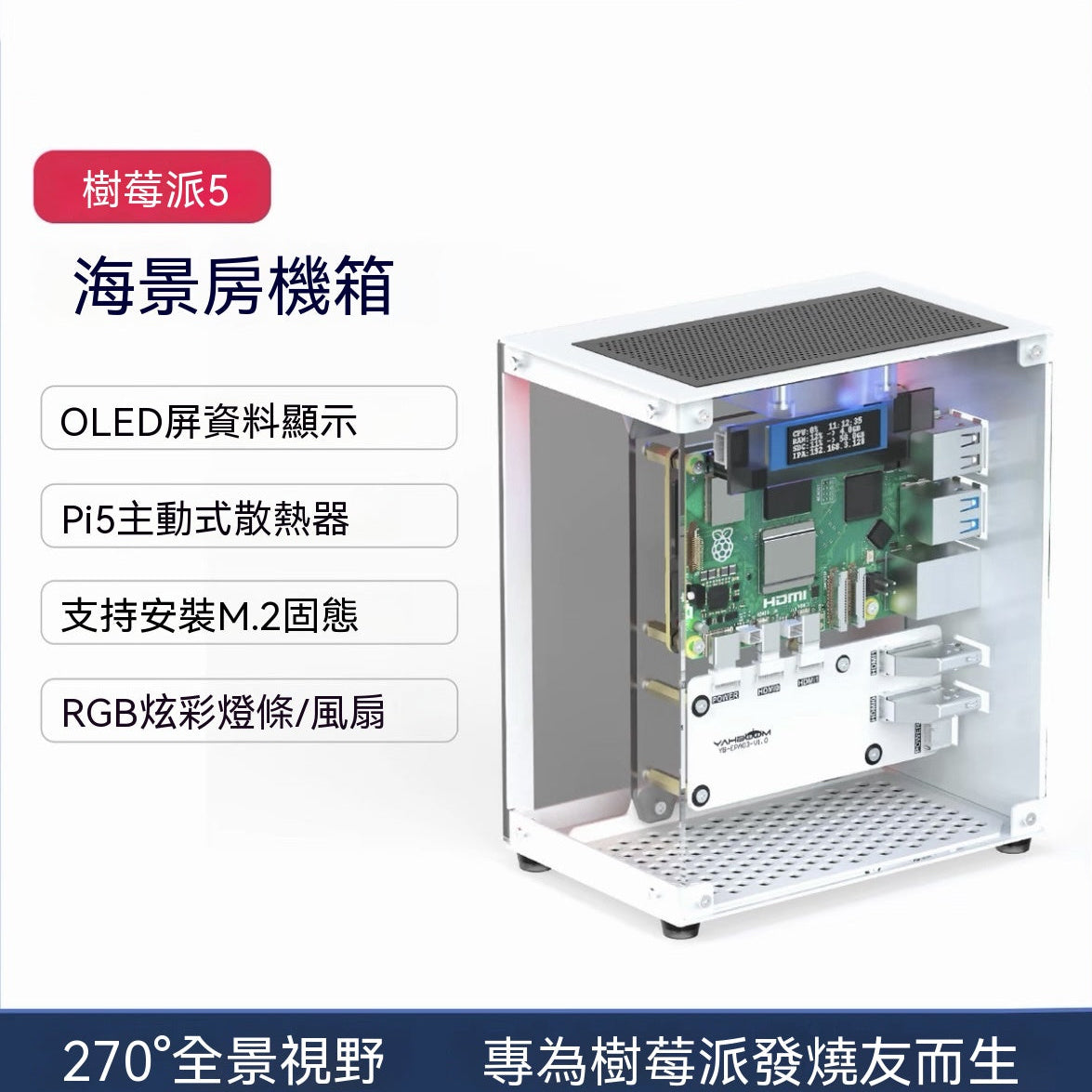

Core Highlights

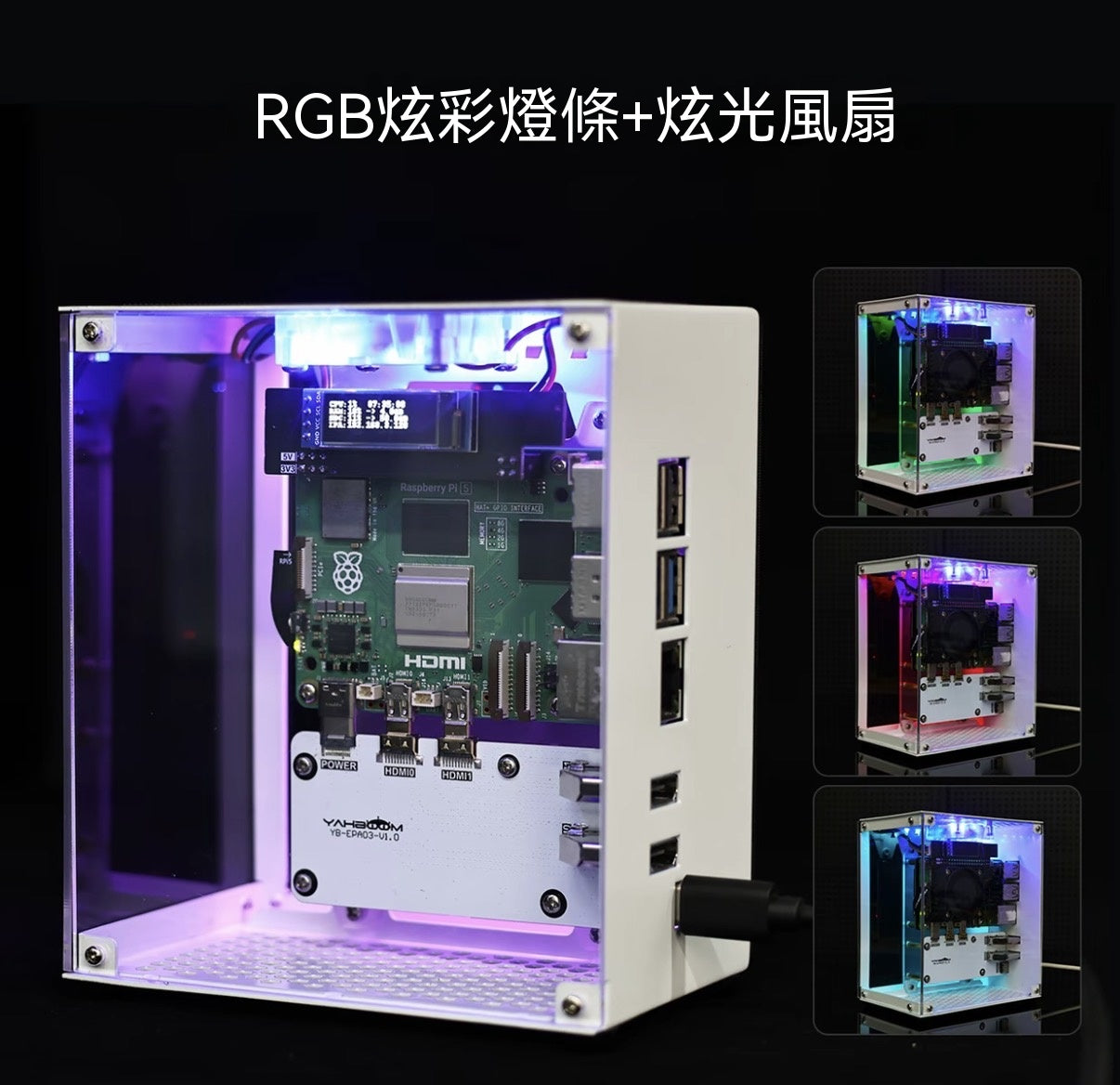

1. Panoramic Ocean View Design: Four transparent acrylic side panels, RGB light strips + dazzling fans, multi-color flowing light effects, creating a full minimalist desktop host atmosphere.

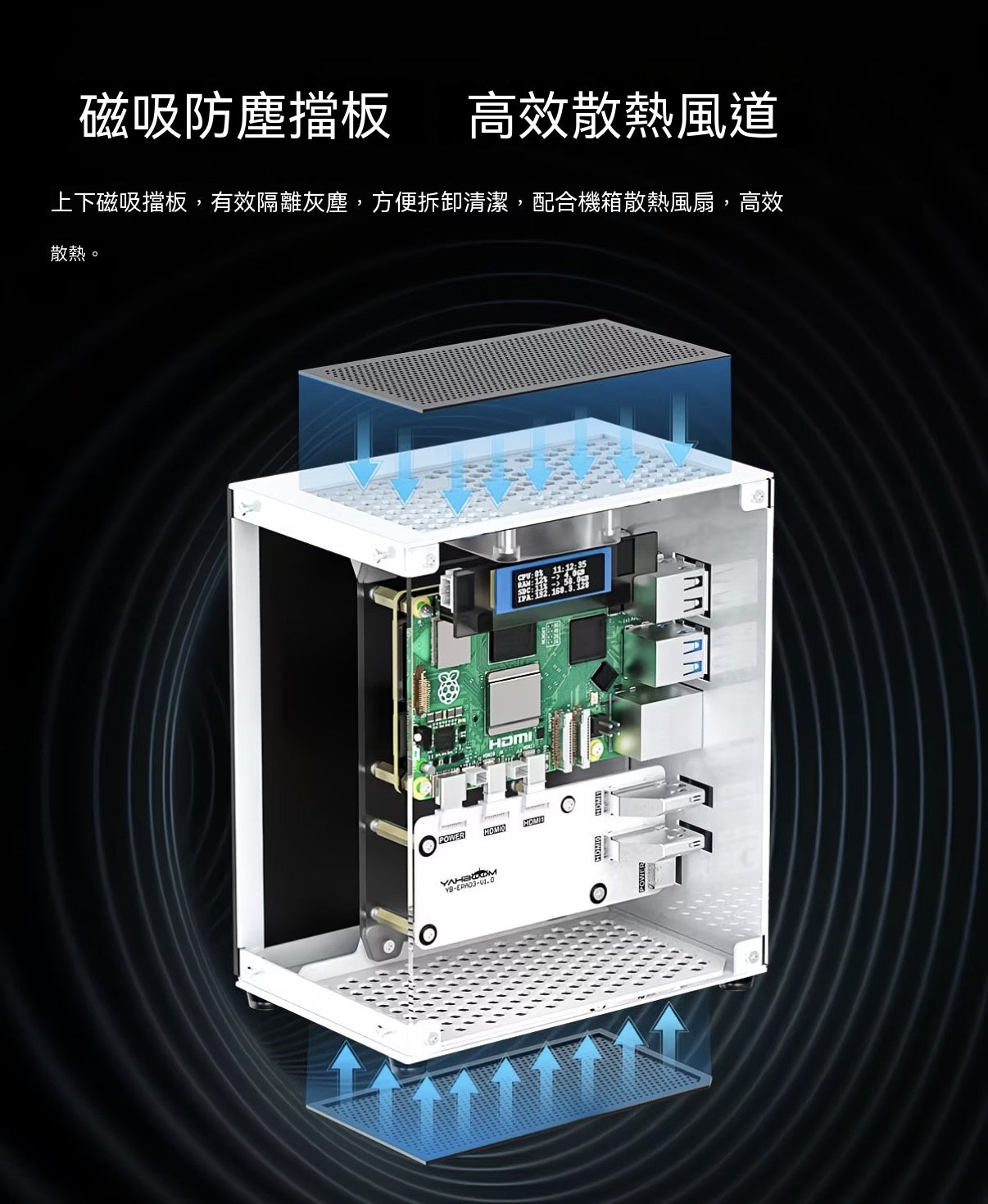

2. Efficient Bi-directional Heat Dissipation: Top and bottom honeycomb ventilation channels, with magnetic dust filters; can be equipped with a dedicated active air cooler to solve the high heat issue of the Pi5.
3. Integrated Expansion Adapter Board: Dedicated Pi5 interface adapter board, fully extending dual HDMI, Type-C power, USB2.0/3.0, Gigabit Ethernet port, allowing direct plug-in of peripherals without cable modification.

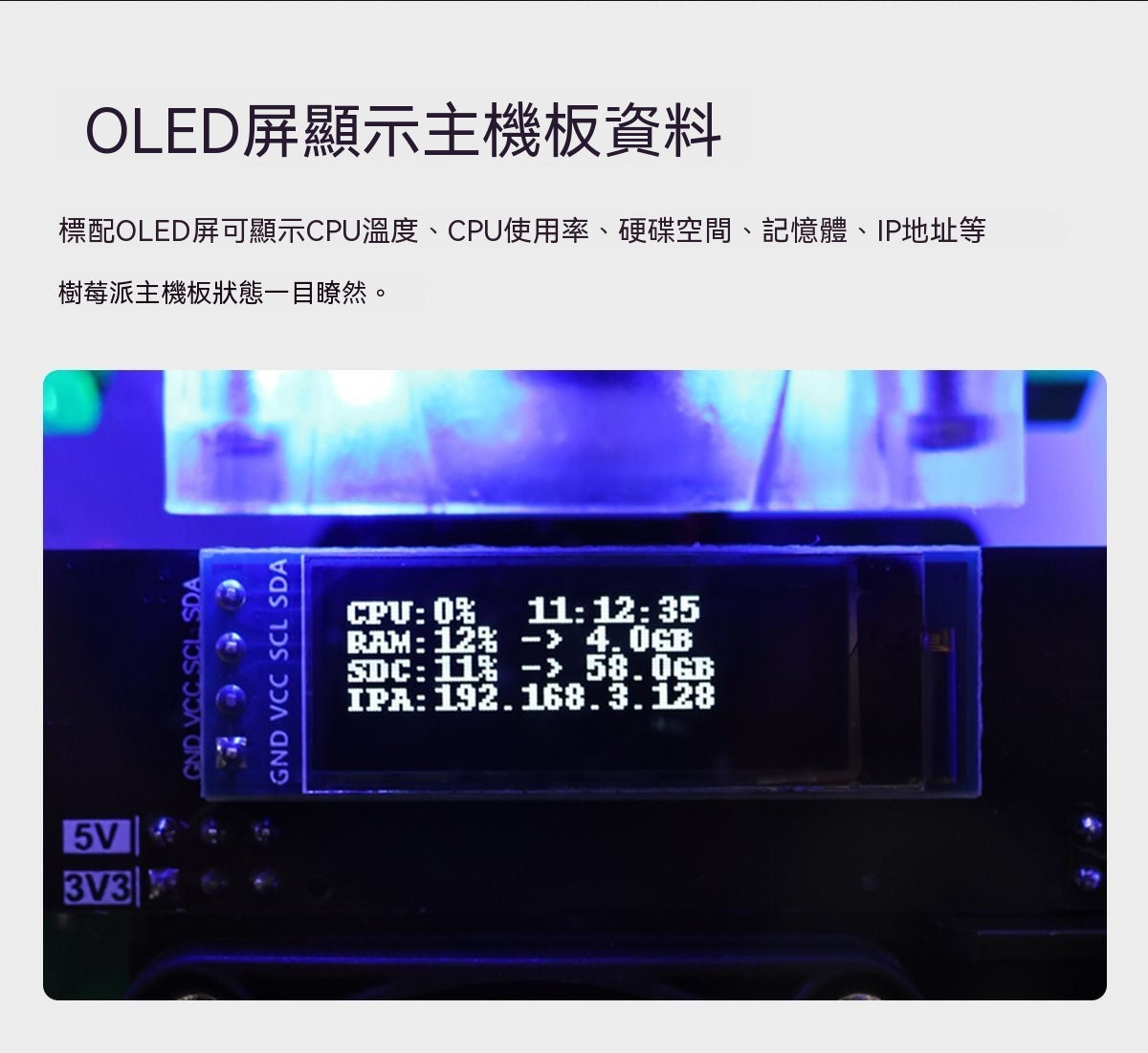

4. Real-time OLED Monitoring Screen: 0.91-inch IIC white screen, real-time display of CPU usage, temperature, memory, storage, and IP address hardware data.
5. Optional M.2 SSD Expansion: PCIe to M.2 expansion board, supporting 256GB SSD, significantly improving storage speed (exclusive to the Luxury Version).

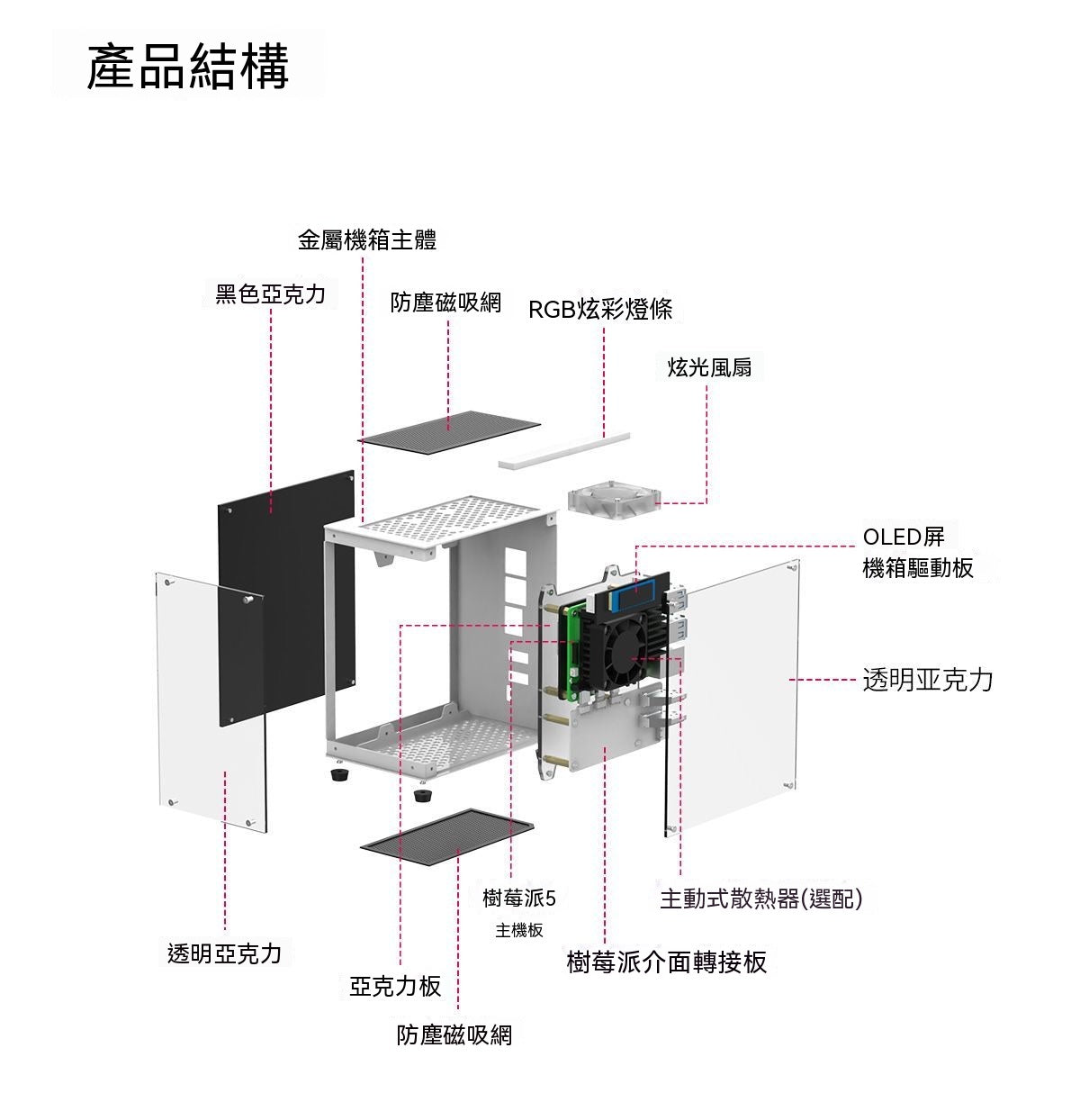

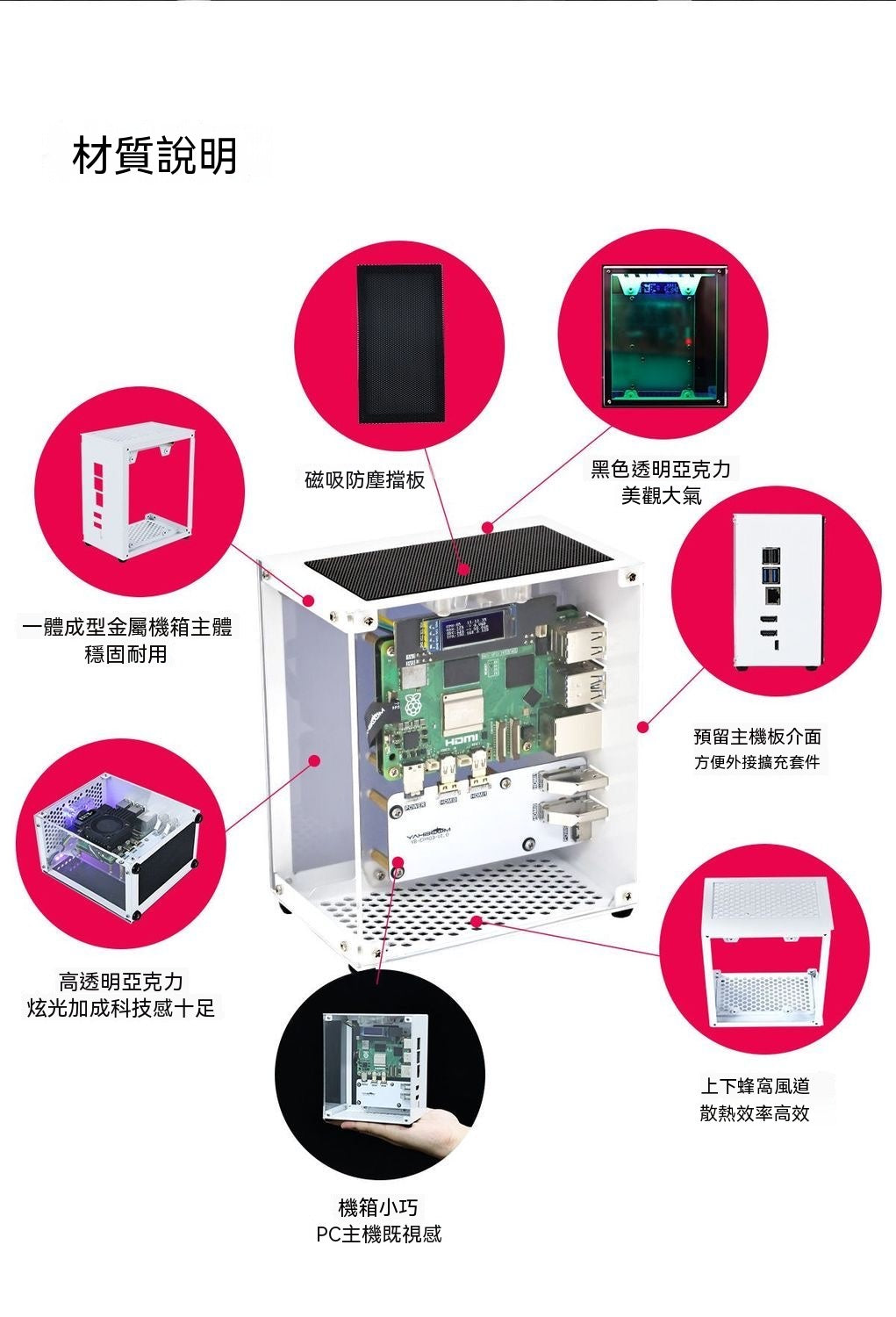

II. Material and Structure Breakdown

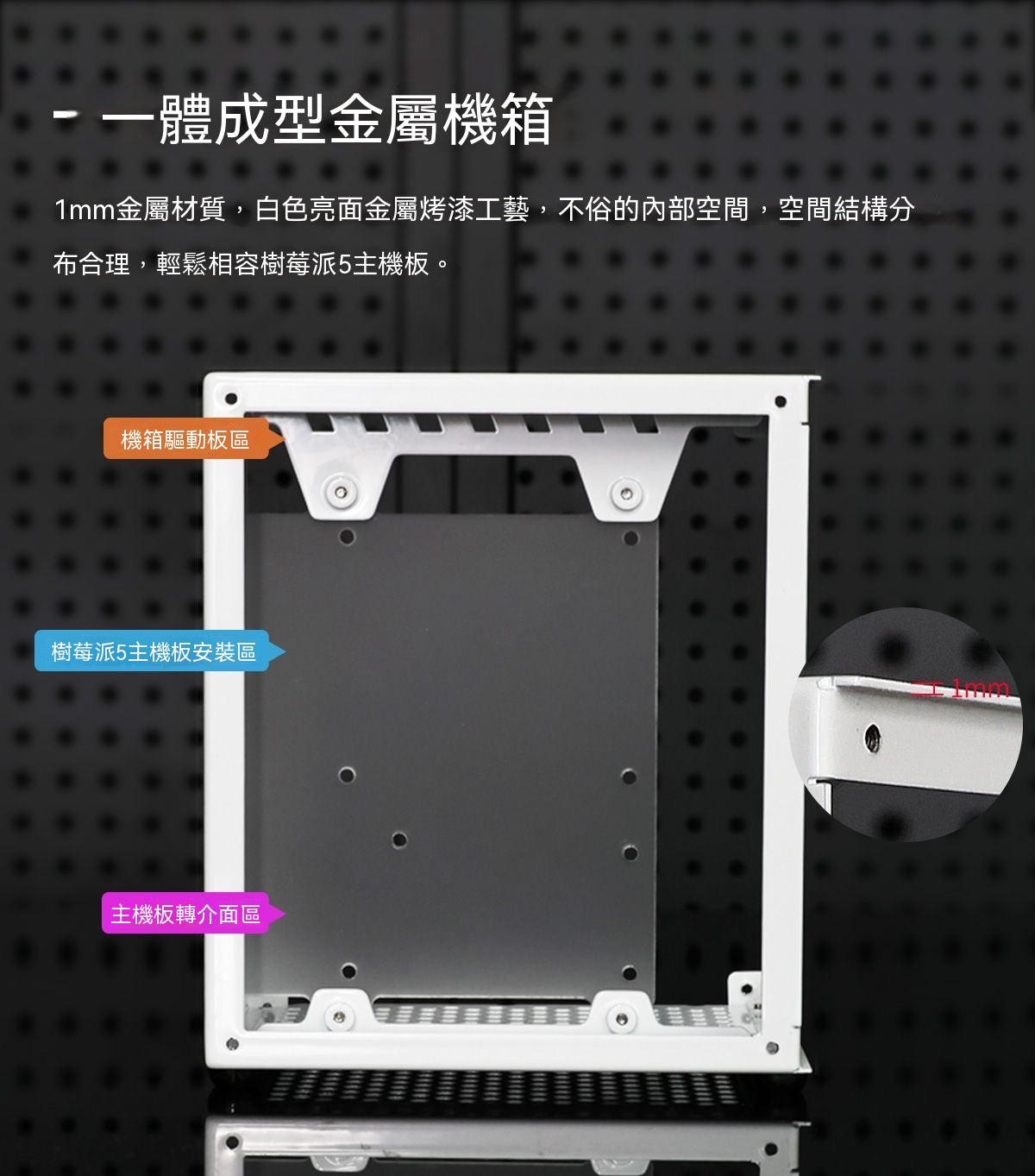

1. Main Body Frame: Integrated metal chassis, white glossy paint, 1mm thick plate (not aluminum alloy), sturdy and anti-deformation.
2. Visual Panels: 2mm high-transparency colorless acrylic + black semi-transparent acrylic side panels, providing 270° unobstructed view of internal hardware.

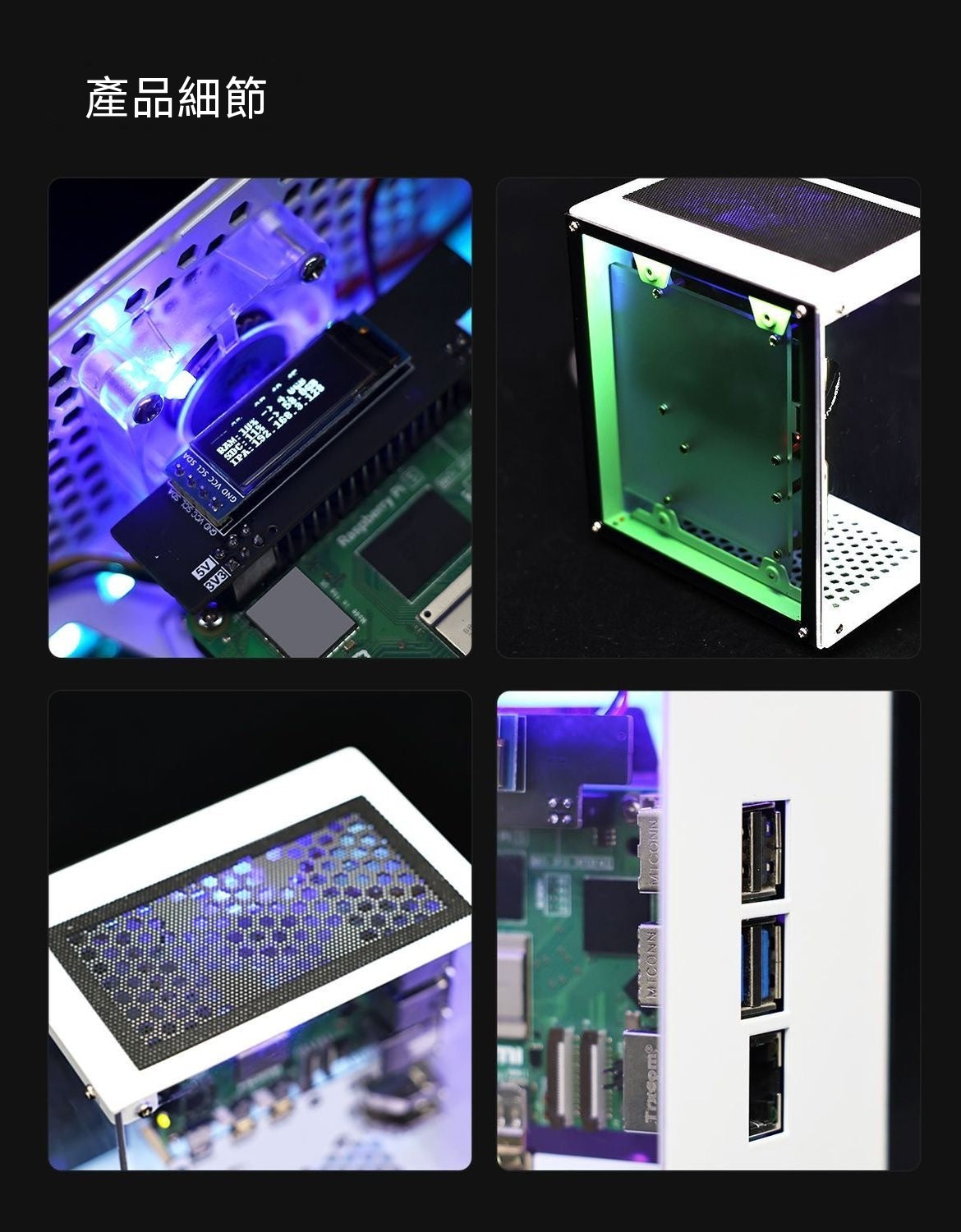

3. Dust-proof Components: Magnetic honeycomb dust shields (one at the top, one at the bottom), detachable for cleaning, preventing dust from blocking air channels.

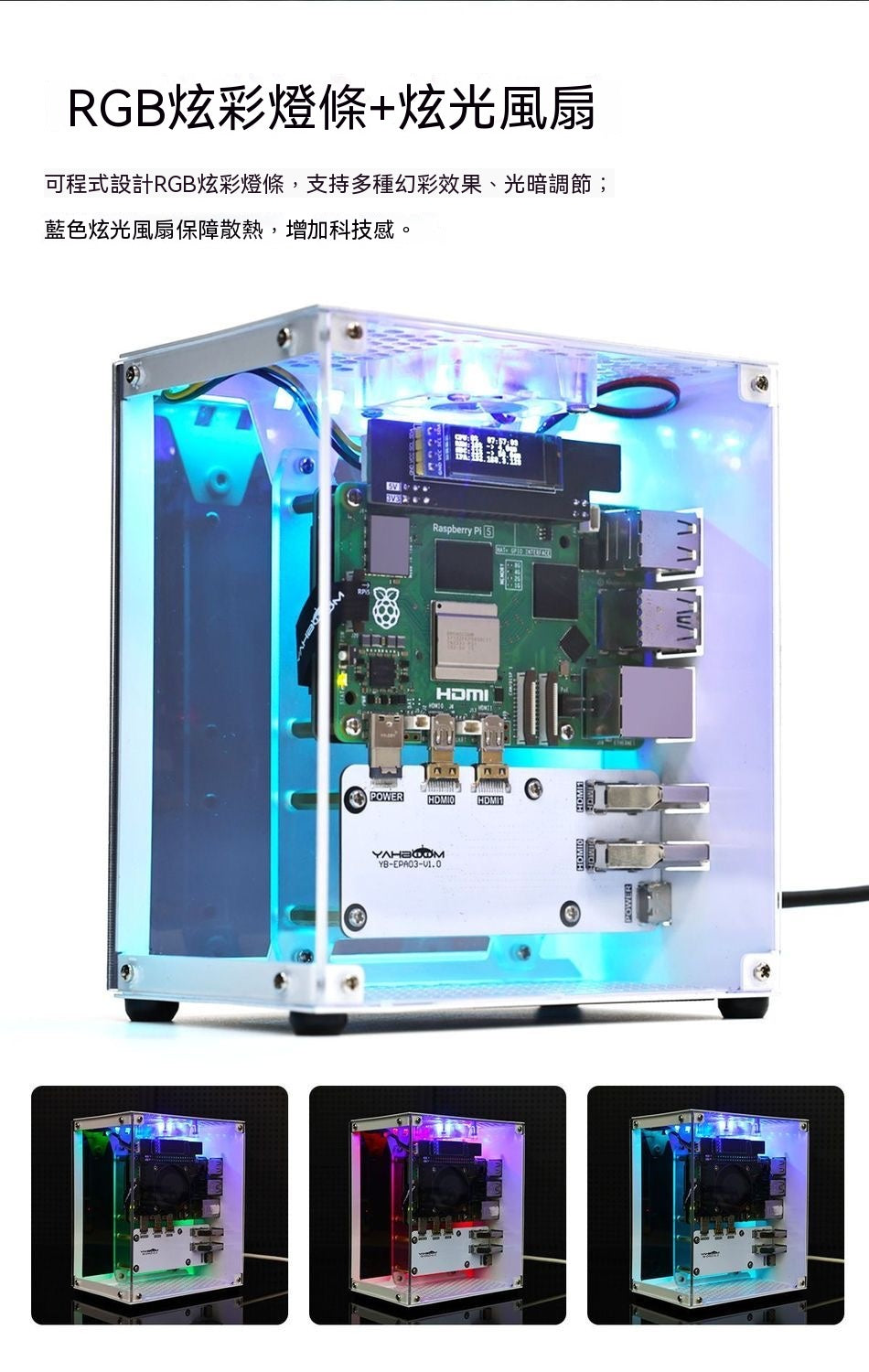

4. Lighting Module: WS2812 flexible RGB light strip, 14 independently controllable LED beads, full-color adjustable.
5. Fan Module: 404010mm 5V dazzling fan, 2200RPM low-noise operation, 20,000 hours lifespan.
6. Drive Control Board: STM8 master control board, dual fan interfaces + RGB light strip interface, IIC communication with Raspberry Pi motherboard.
7. Accessories: Rubber non-slip feet, full set of copper standoffs and screws, special tools for assembly/disassembly.
III. Comparison of Three Version Configurations

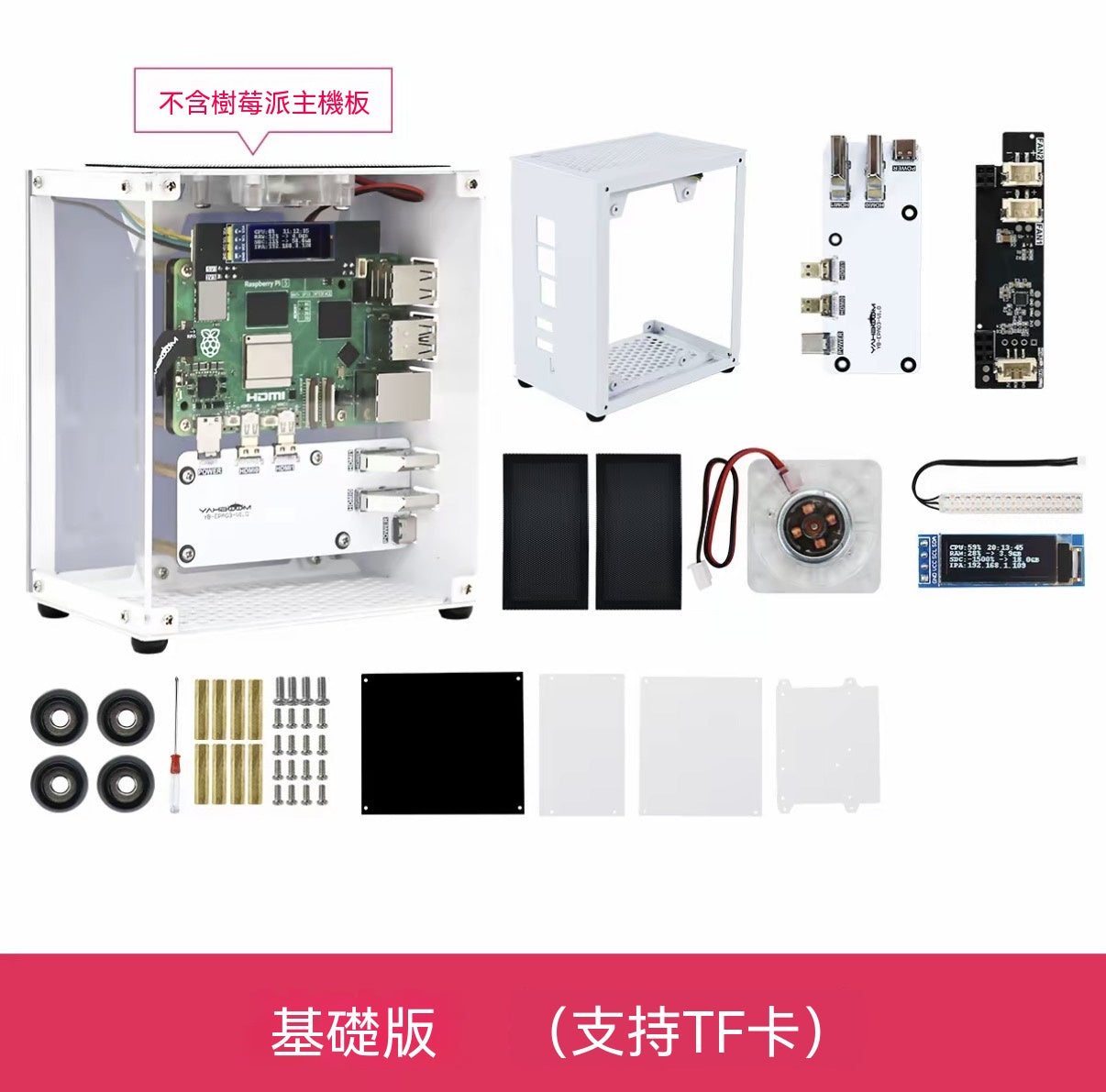

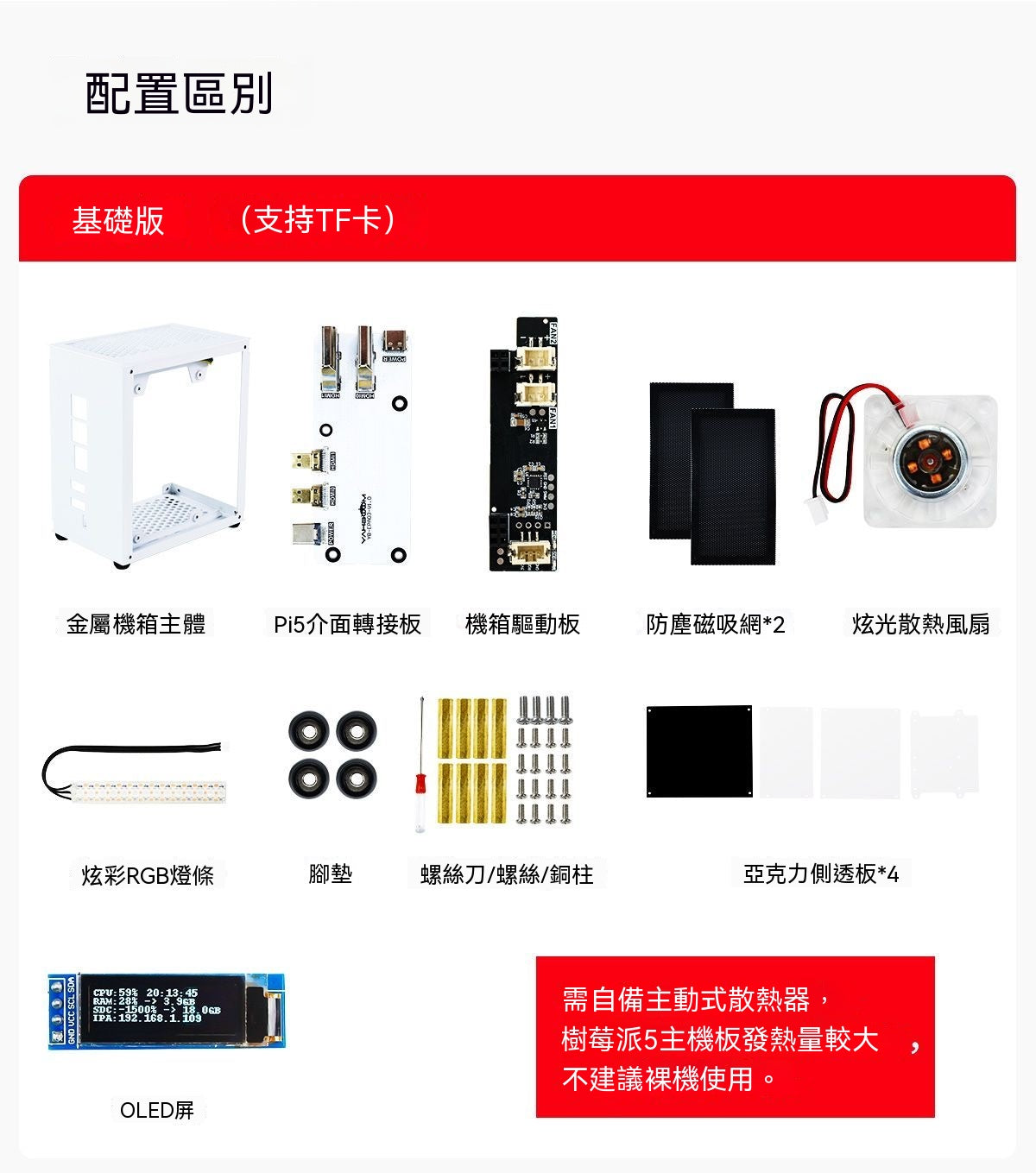

1. Basic Version (TF card storage only)
Full set of standard accessories: Metal chassis, Pi5 adapter board, chassis control board, magnetic dust filter ×2, dazzling fan, RGB light strip, non-slip feet, screw tool kit, 4 acrylic transparent panels, OLED monitoring screen.
⚠️ Note: Does not include active cooler. The Raspberry Pi 5 generates significant heat, requiring self-matching with a cooling module. Running the bare board for extended periods is not recommended.

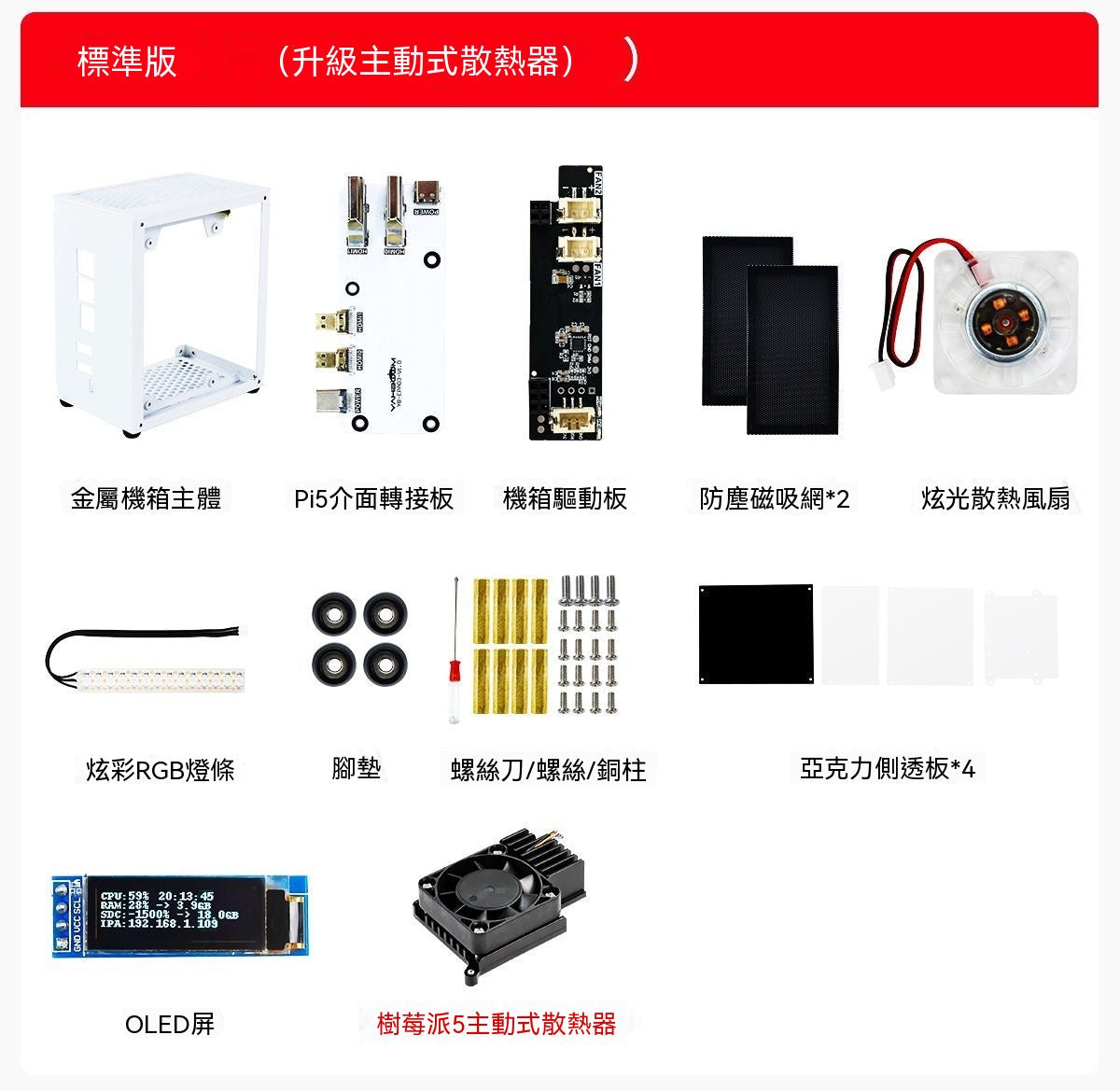

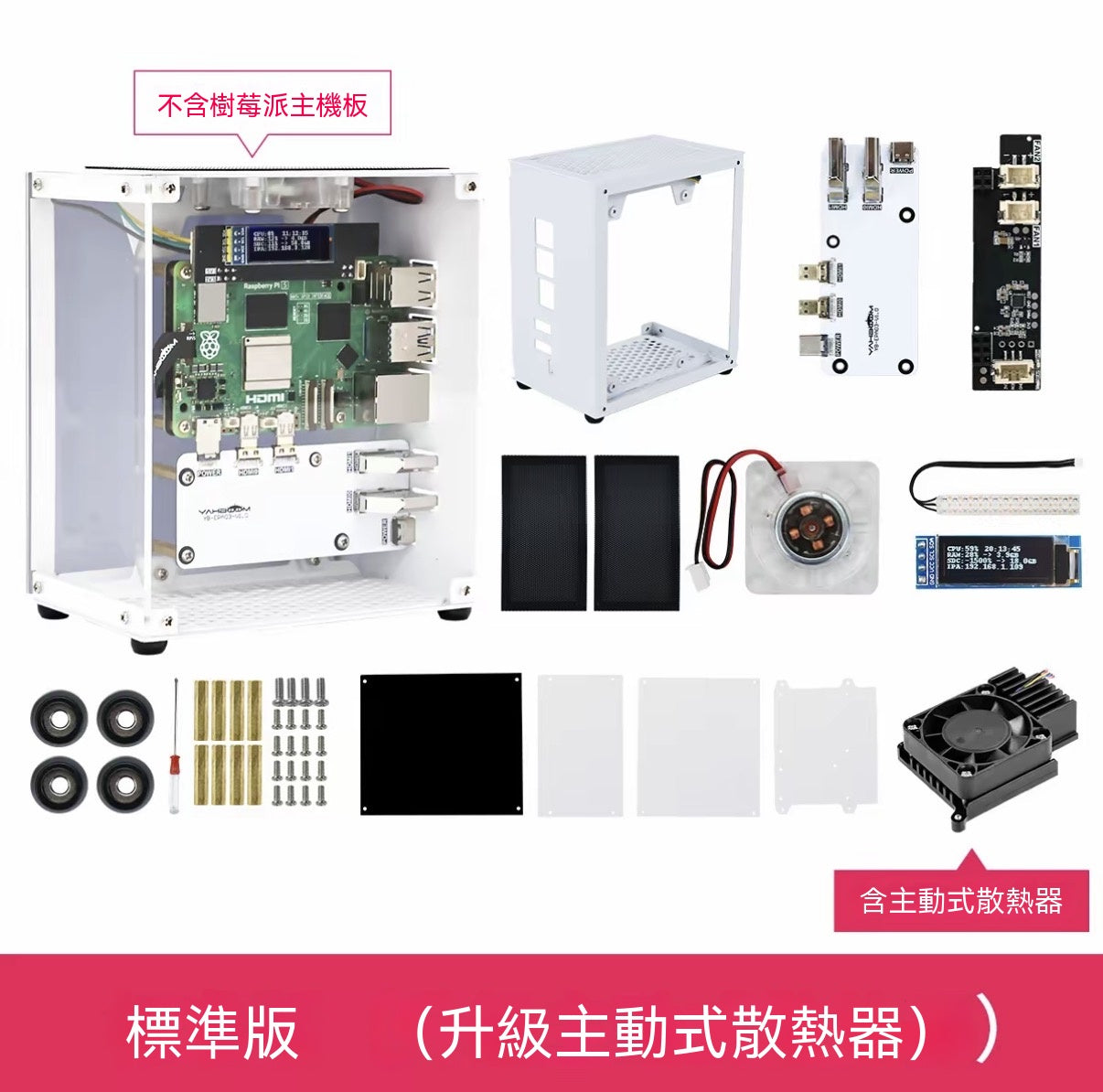

2. Standard Version (Upgraded with active cooling)

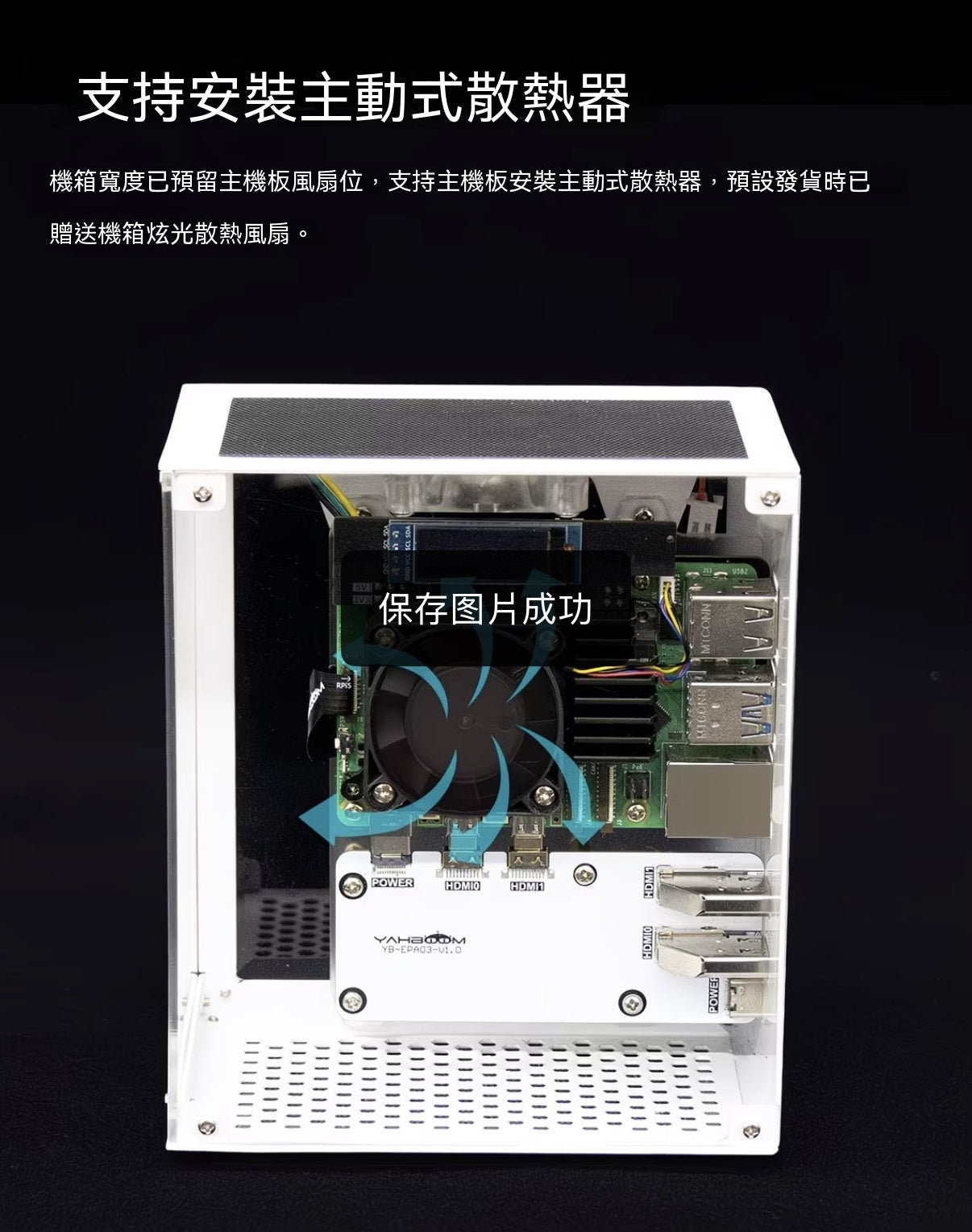

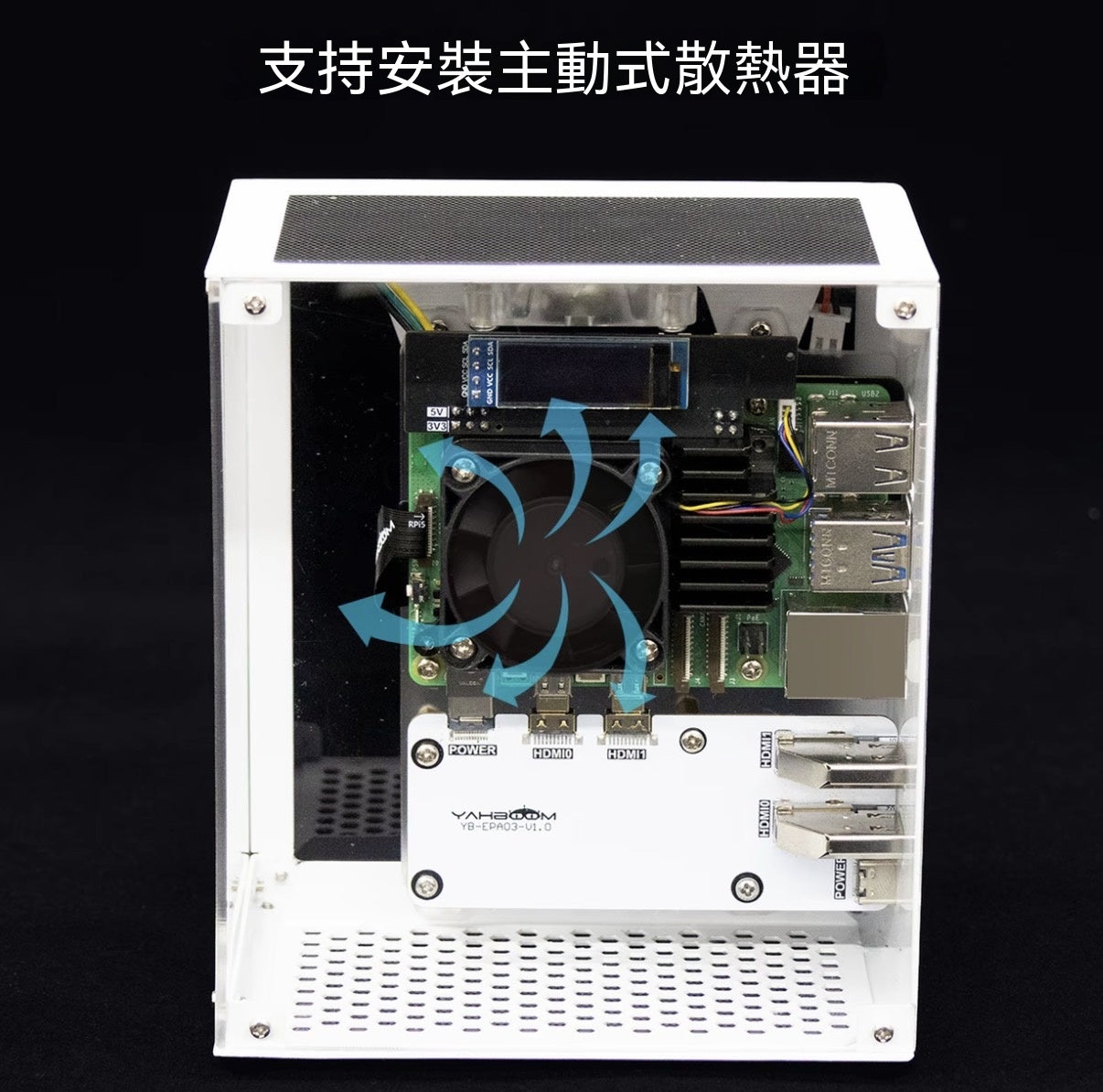

Includes all basic version accessories, plus a dedicated active air cooler for Raspberry Pi 5, providing complete cooling right out of the box for stable high-load operation.

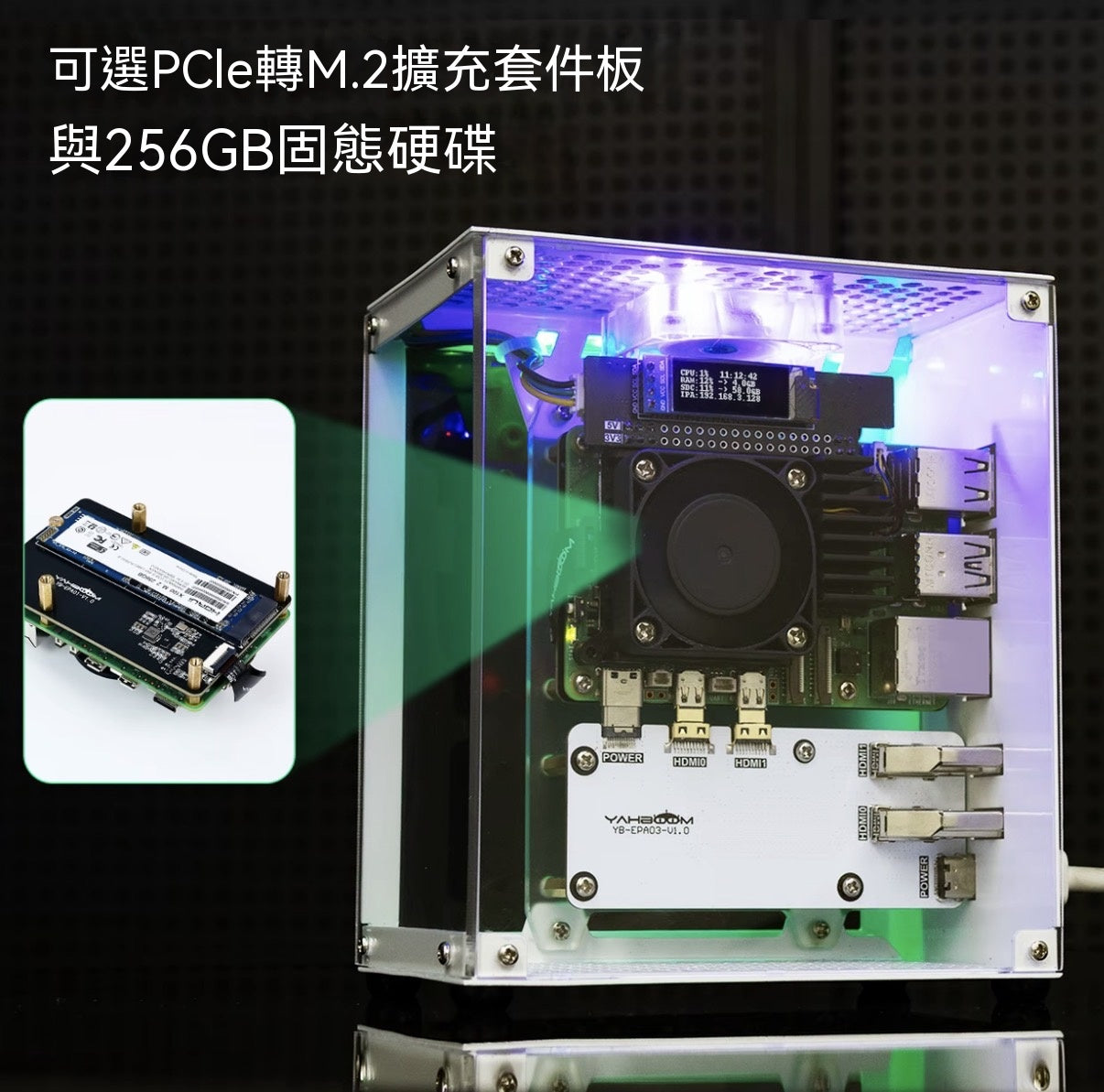

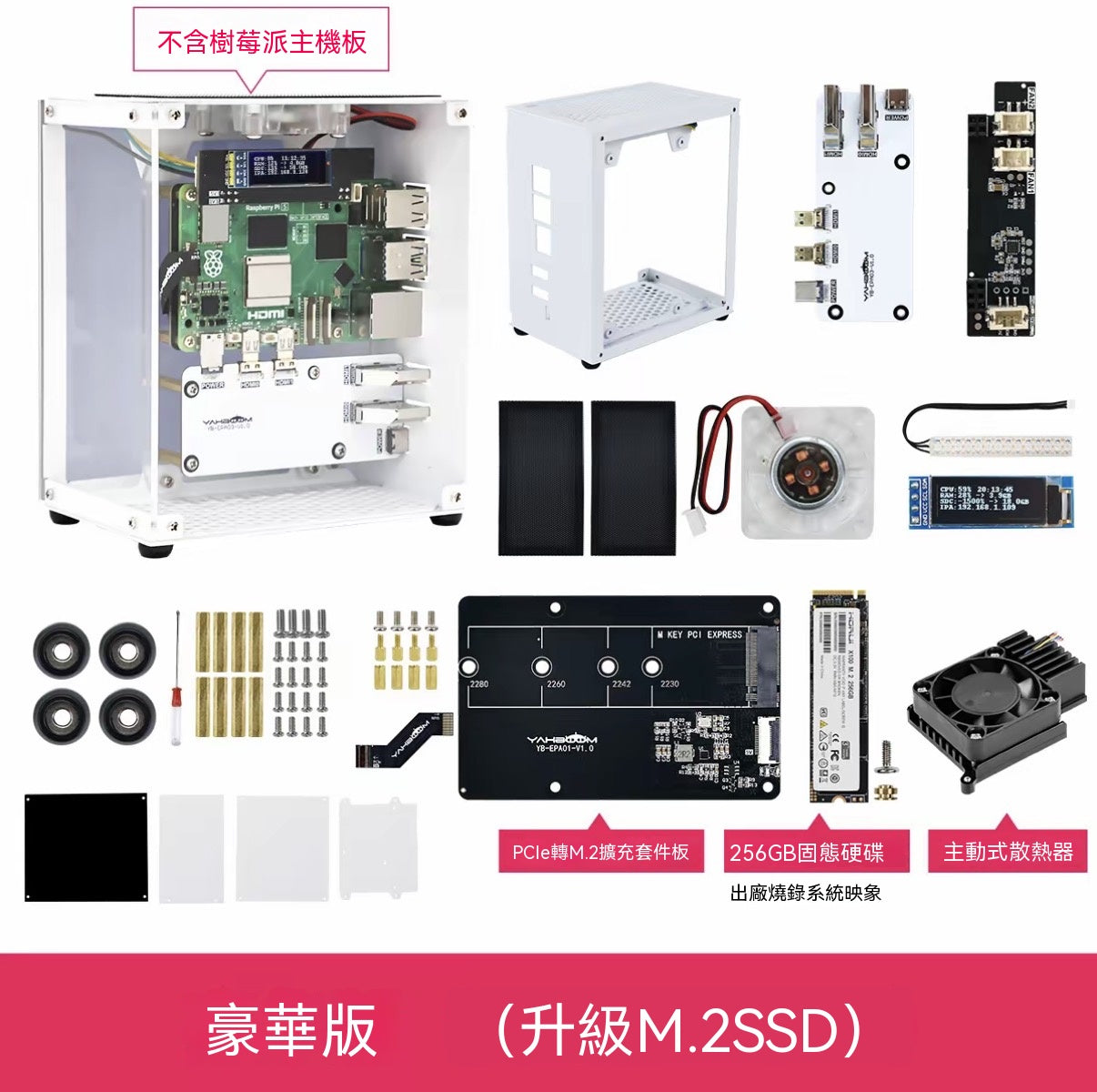

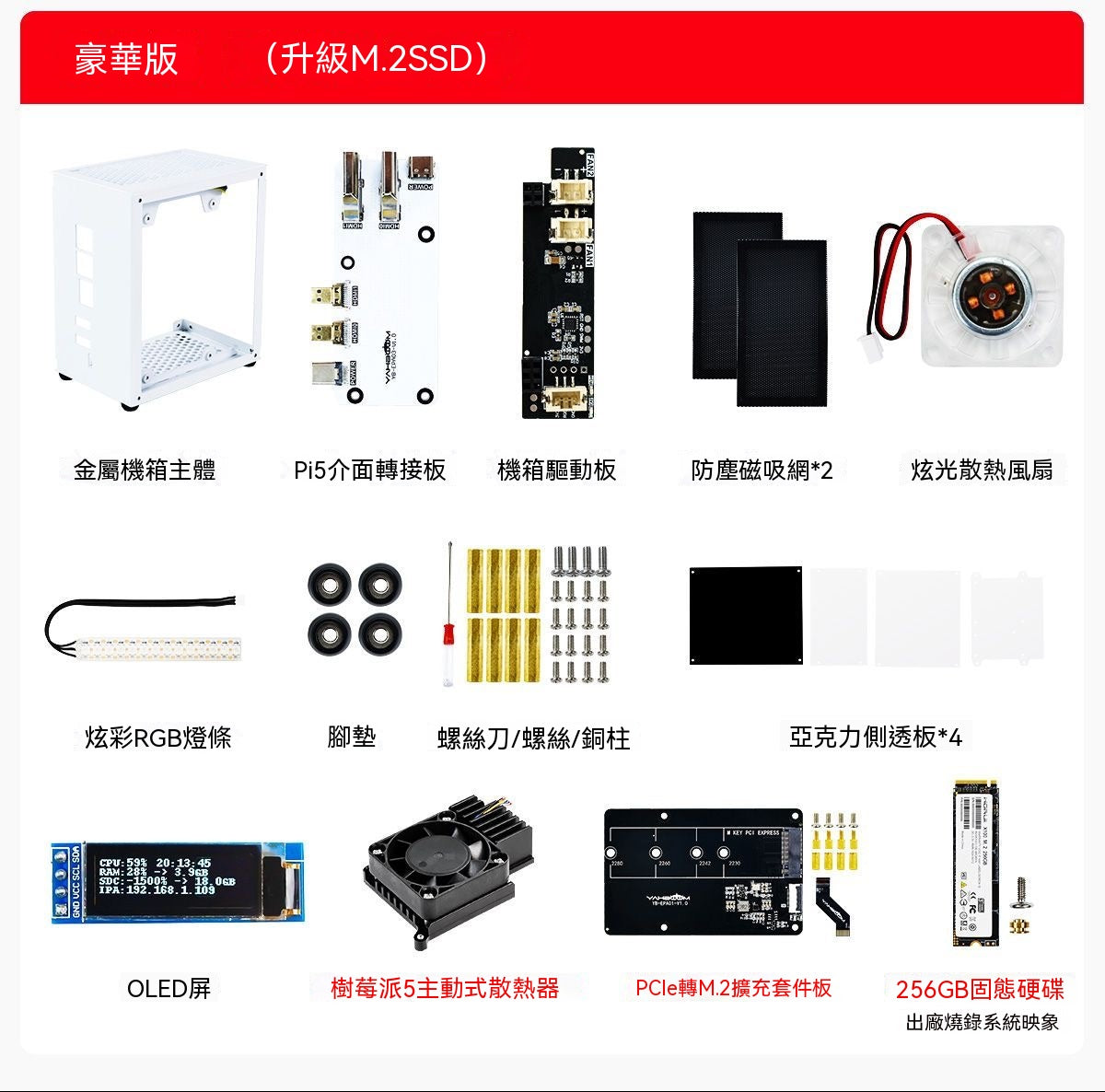

3. Luxury Version (M.2 SSD complete kit)

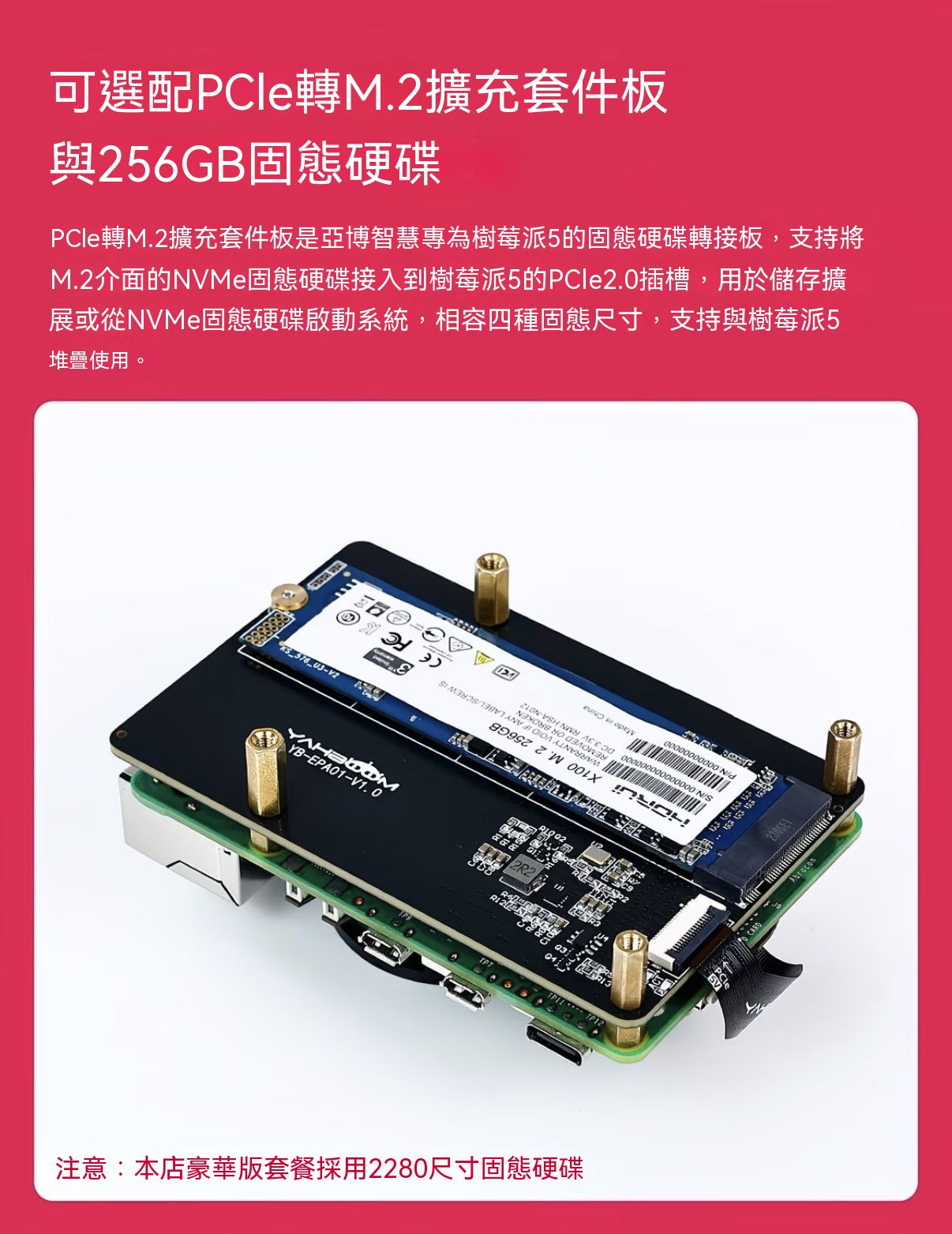

Includes all standard version accessories, plus: PCIe to M.2 expansion board, 256GB M.2 SSD (pre-flashed system image), eliminating the need for a TF card for high-speed SSD boot and operation.
IV. Detailed Product Specifications

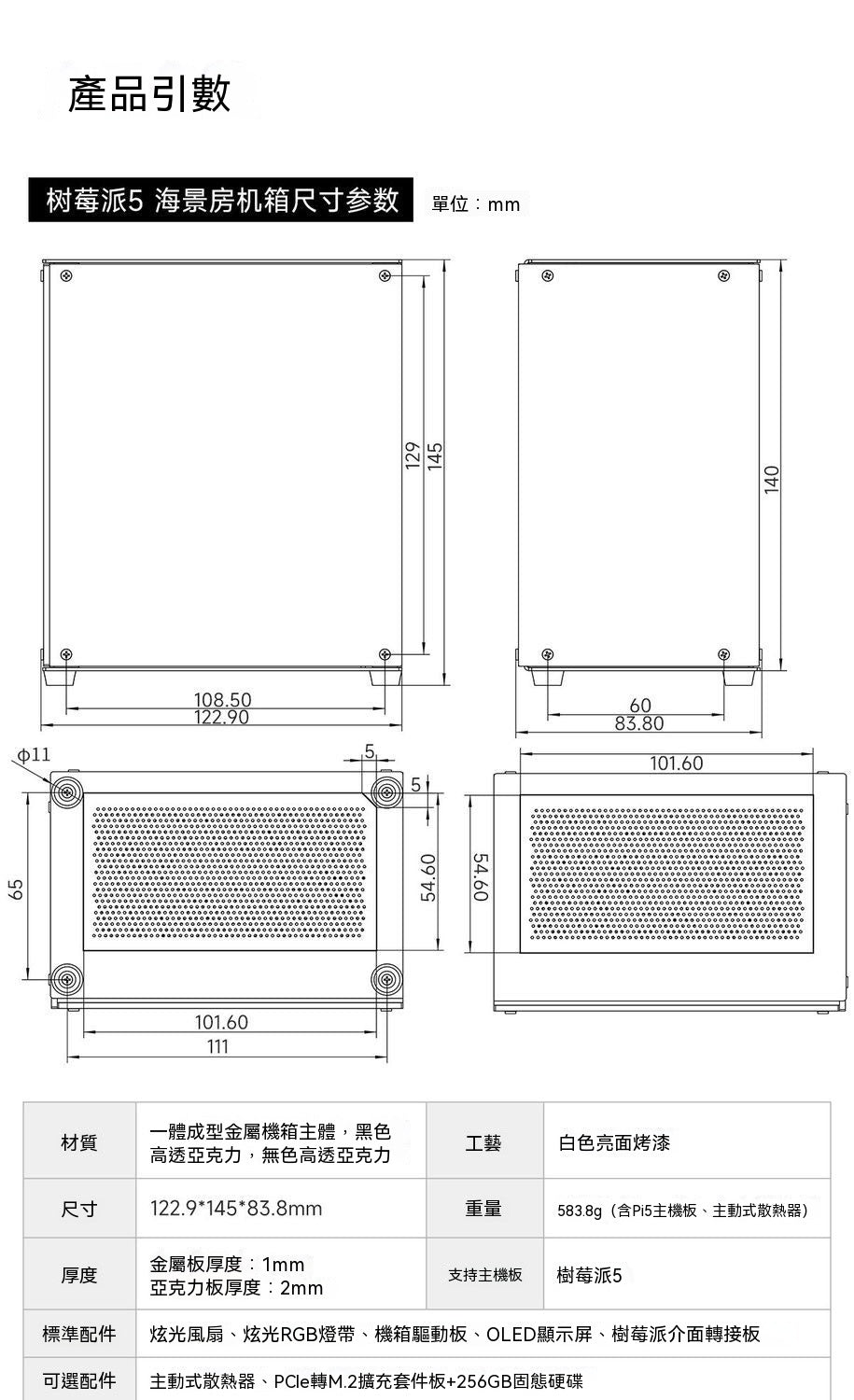

Overall Chassis Dimensions
• External dimensions: 122.9*145*83.8mm
• Total weight: 583.8g (including Pi5 motherboard + active cooler)
• Panel thickness: Metal 1mm, Acrylic 2mm
• Supported motherboard: Raspberry Pi 5 only
Module Specifications

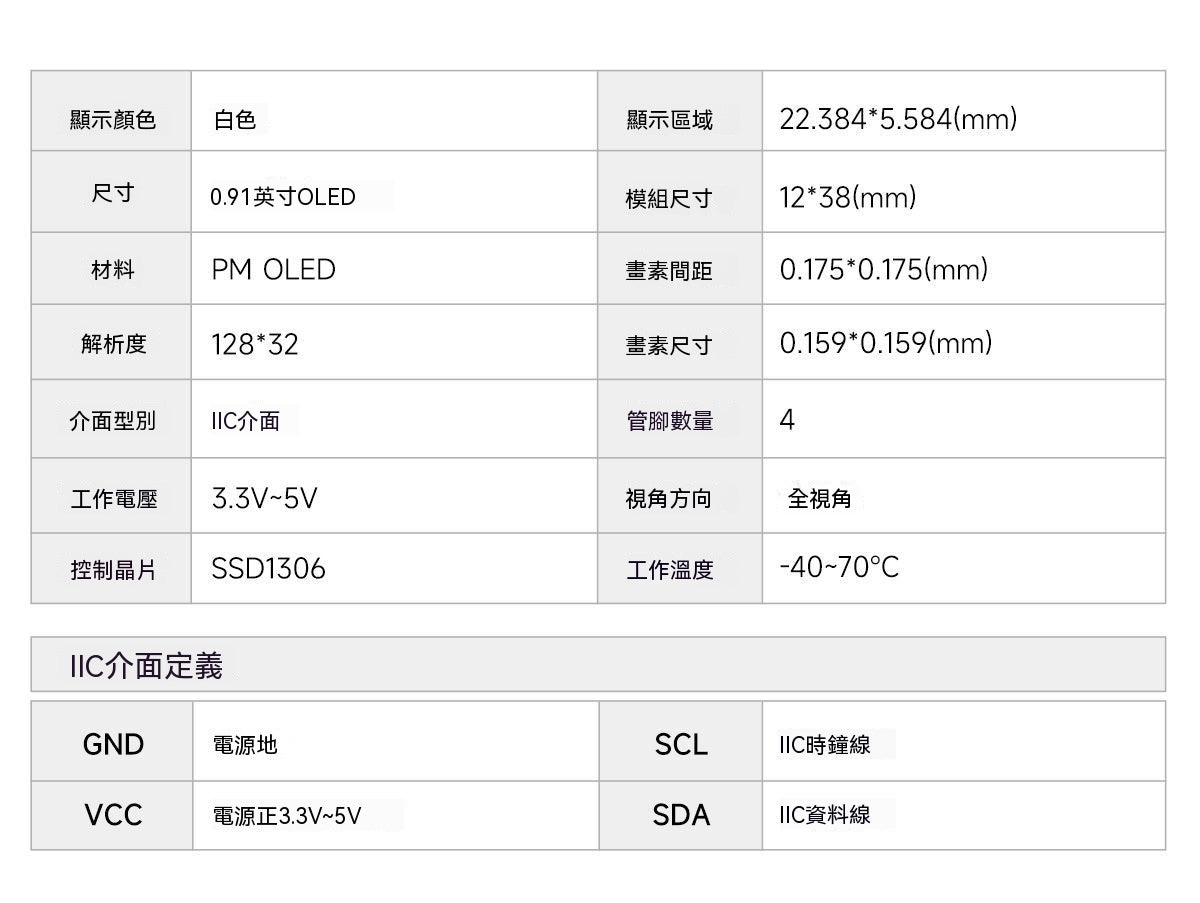

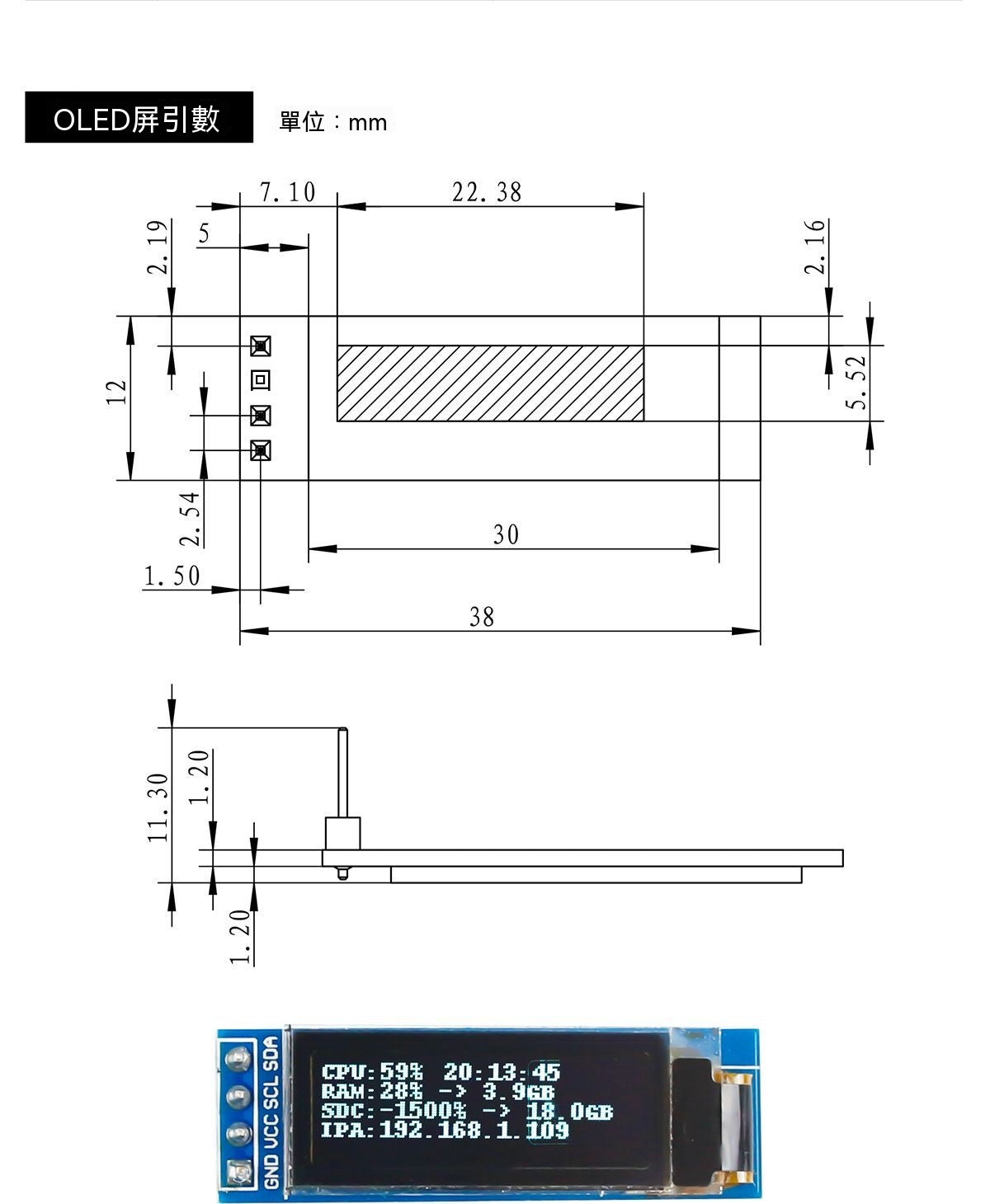

1. OLED Screen
0.91-inch 128*32 resolution, IIC communication, 3.3~5V power supply, all-angle white display, operating temperature -40~70℃.

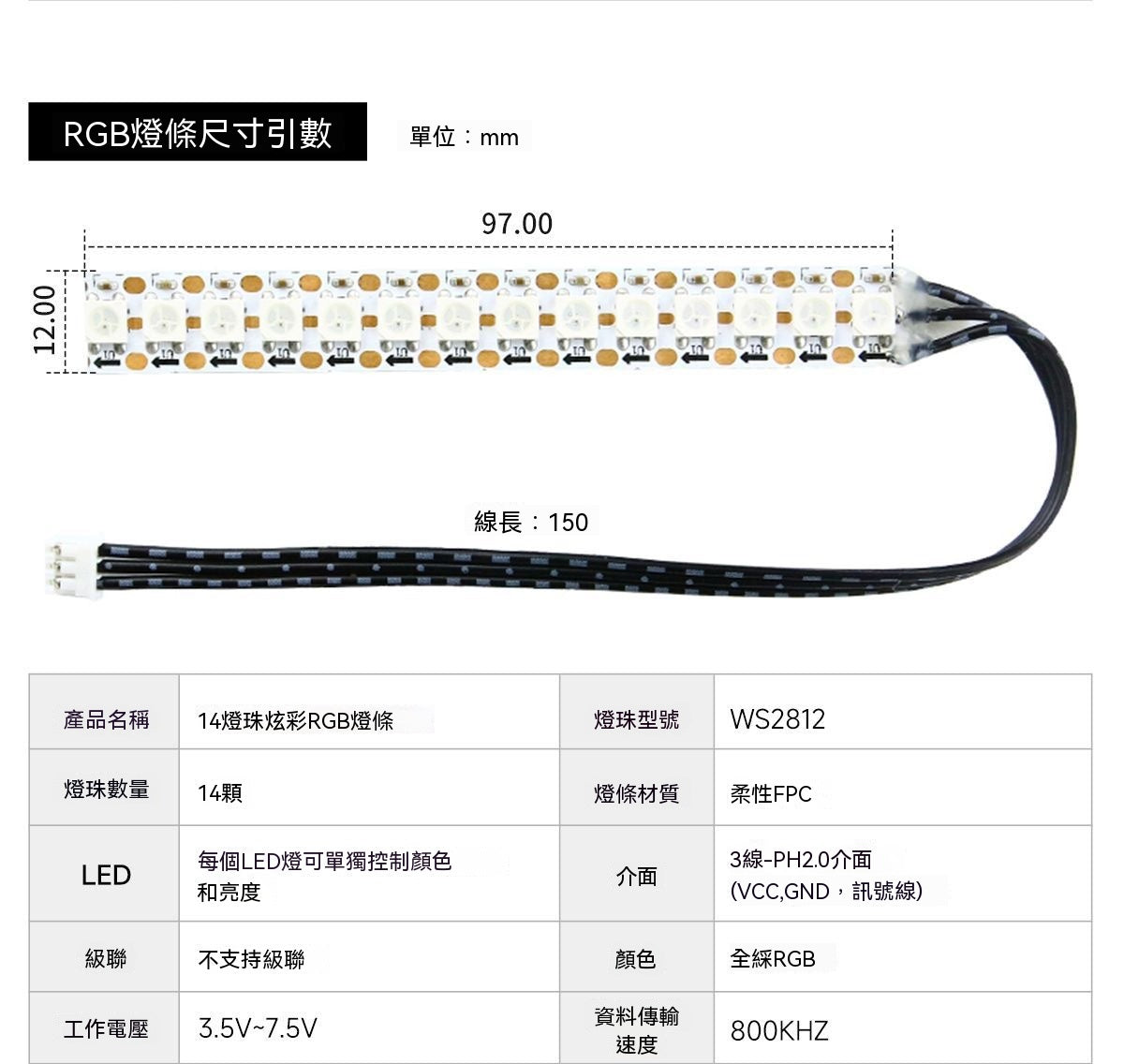

2. RGB Light Strip
97mm long flexible FPC light strip, 14 WS2812 LED beads, independent color control per LED, 3.5~7.5V operating voltage.

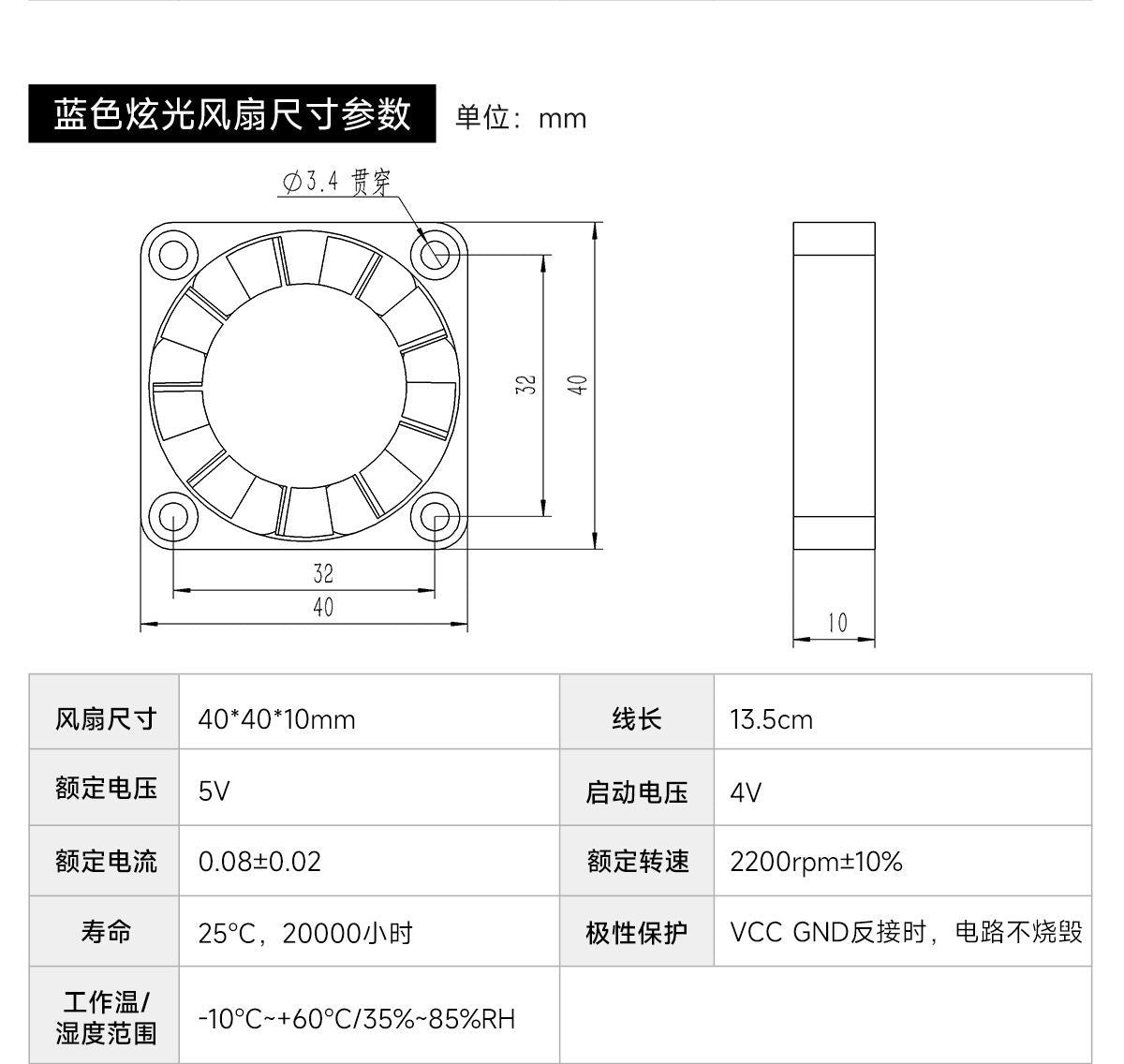

3. Dazzling Fan
40*40*10mm 5V fan, 2200rpm speed, quiet and low vibration, with power reverse connection protection.

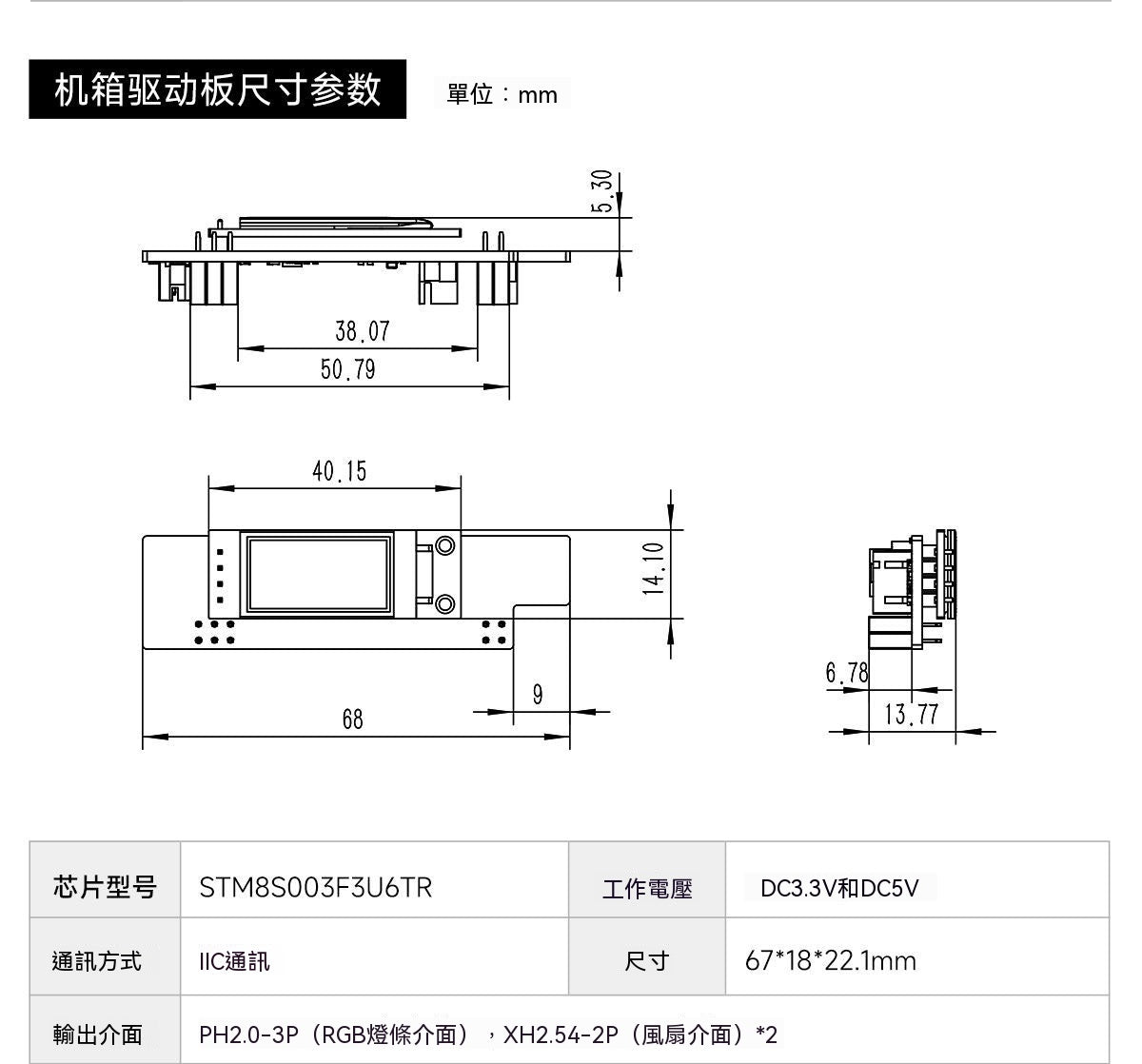

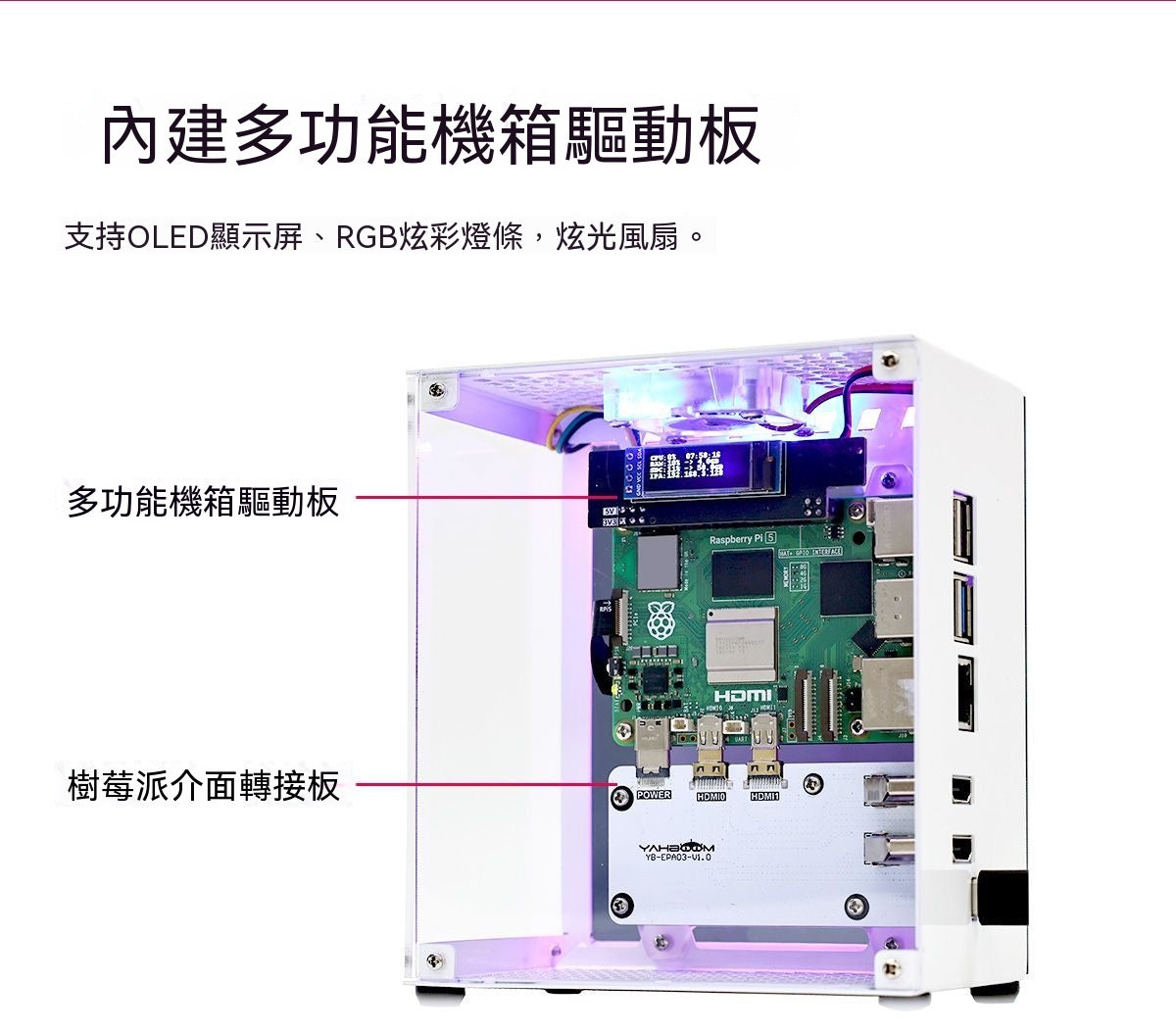

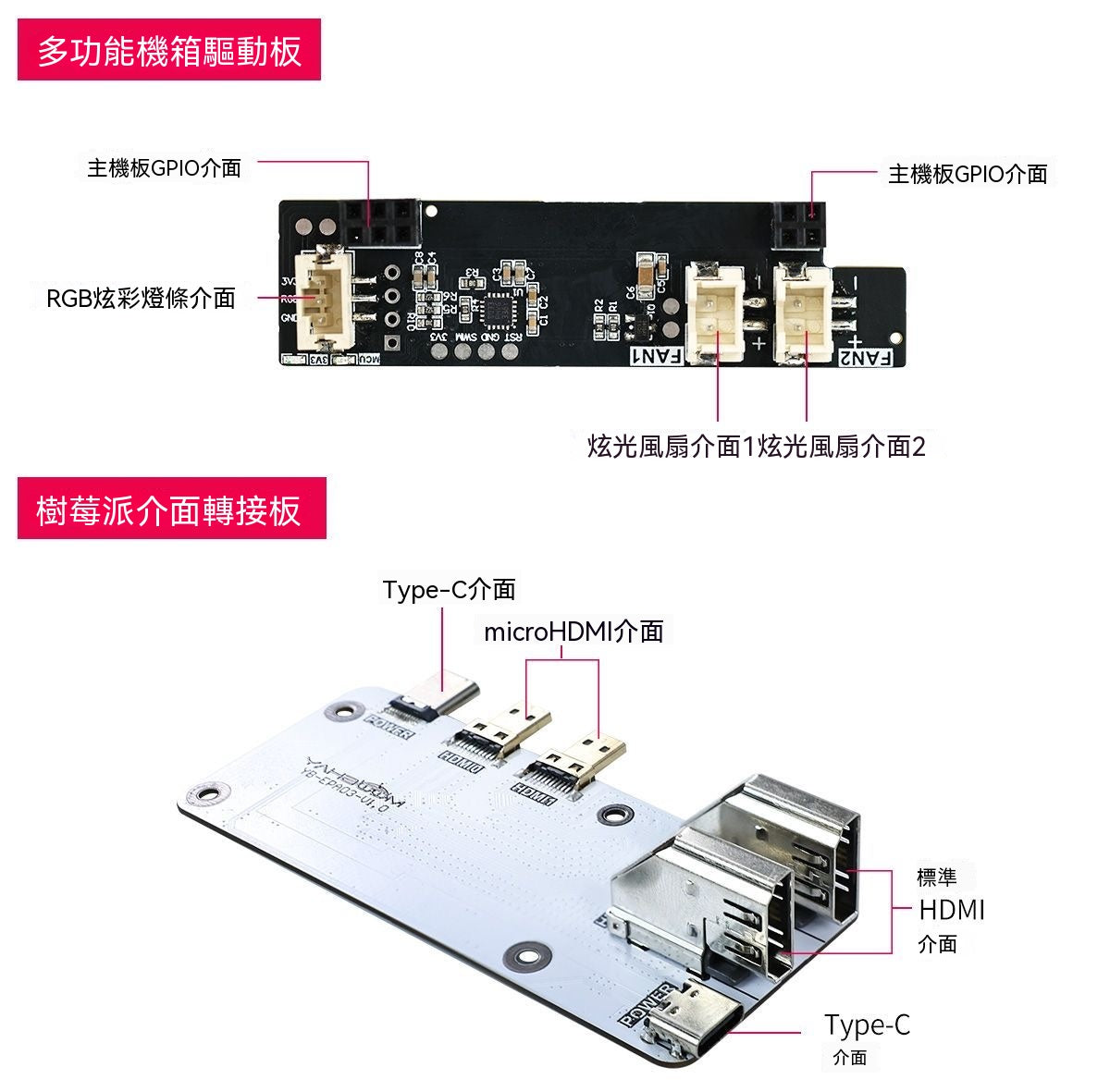

4. Drive Control Board
Dimensions 67*18*22.1mm, STM8S003 main controller, dual fan output + single RGB light strip interface, IIC data transmission.

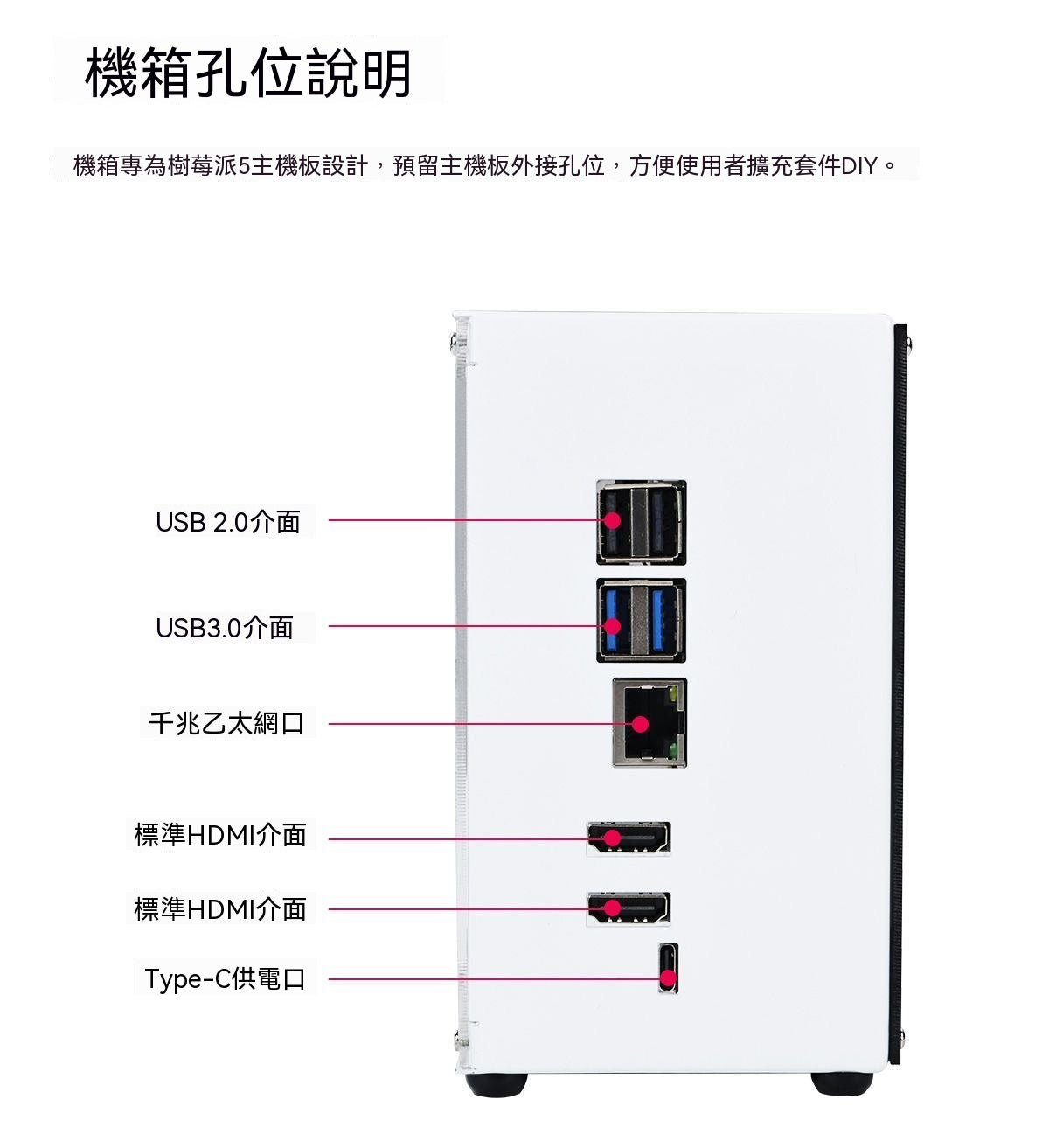

External Chassis Interfaces (rear integrated extension)
Dual standard HDMI, USB2.0, USB3.0, Gigabit wired network port, Type-C power input, no need to bend original motherboard cables.
V. Usage Scenarios
1. Raspberry Pi 5 miniature desktop host, combined with monitor, keyboard, and mouse for DIY mini computer.
2. Soft router, NAS storage server, AI edge computing development machine case.
3. Enthusiast desktop display item, RGB lighting decoration, transparent case showcasing DIY hardware.
4. Dedicated protective case for program development, image processing, and media playback.
VI. Summary of Product Advantages
1. Integrated metal frame (not aluminum alloy), lower cost, sufficient hardness, not easily scratched or deformed during daily use.
2. Complete integrated adapter design, solving the cluttered layout of native Pi5 interfaces, making external devices neater.

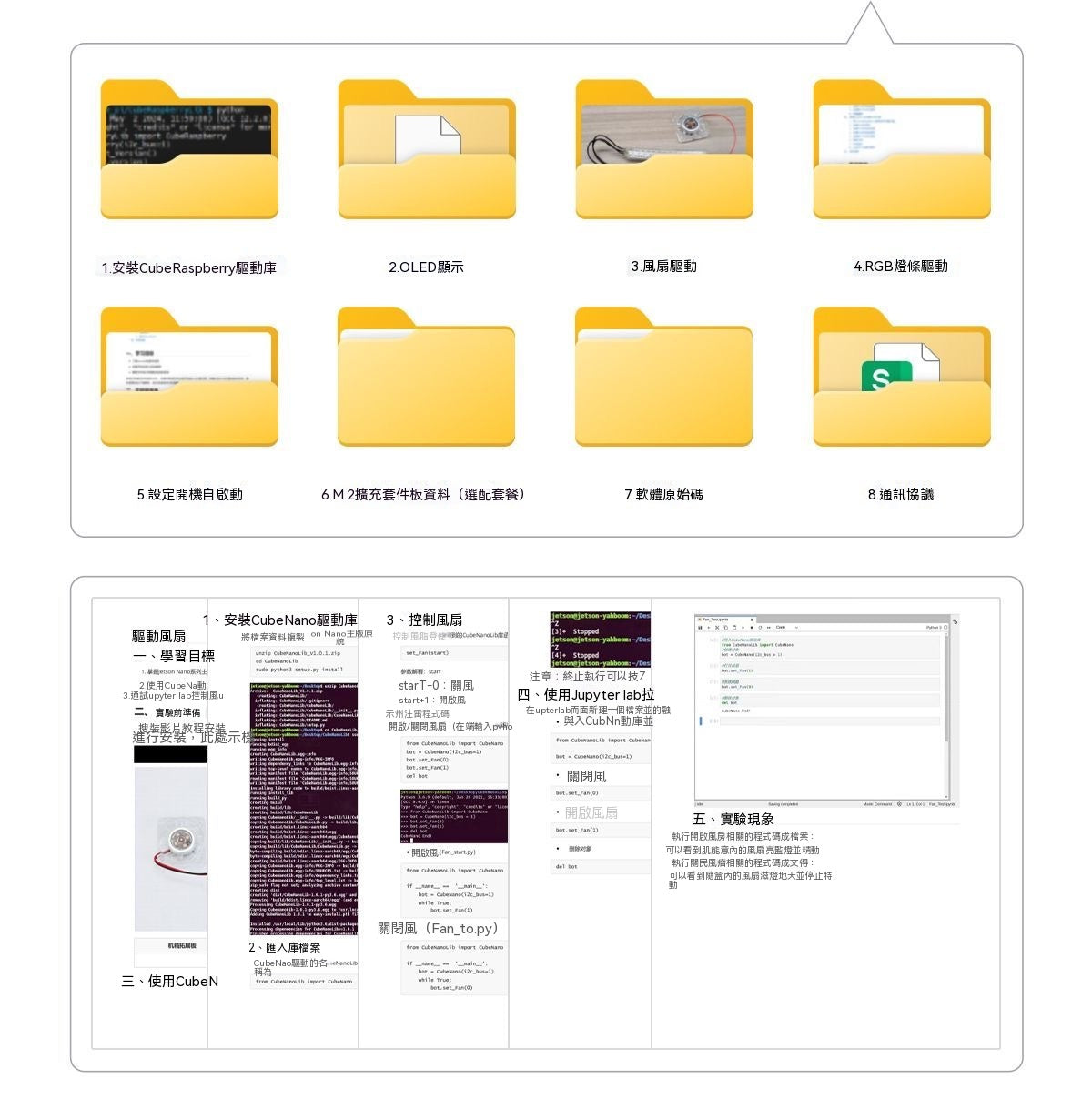

3. Complete hardware and software compatibility, a one-stop kit for lighting, heat dissipation, monitoring, and high-speed storage, making it easy for beginners.
4. Magnetic removable dust filters + top/bottom convection air channels, preventing dust accumulation during long-term operation and excellent temperature control.
5. Mini size saves desktop space, and the "ocean view" acrylic appearance distinguishes it from ordinary Raspberry Pi plastic cases, greatly enhancing aesthetics.
